Melt Flow Index Tester

Product Description

Product Description

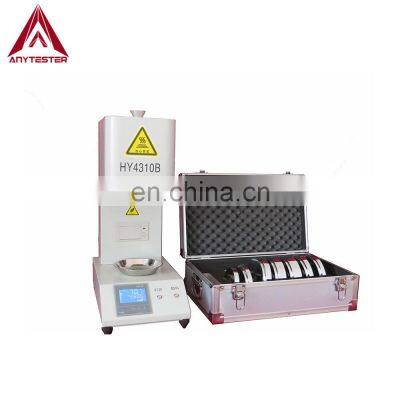

Product DescriptionMelt Flow Index TesterAT430B Melt Flow Index tester (original HY4310B) is used to measure the melt flow rate (MFR) of thermoplastic resin in quality control and research applications. It is suitable for PC, nylon, fluoroplastics and other engineering plastics which of higher melt temperature, and also suitable for PE, PP, ABS resin and other plastics which of lower melt temperature.Details and Features★ PLC control, LCD display, easy to operate★ Real time determine and display the temperature value★ With upper-limit temperature protection function, voice prompt function when the cylinder reaches to constant temperature, etc.★ Fast to heat, small overshoot★ High precision of temperature control★ Fast to restore to the constant temperature after feeding★ With mini-printer to printout the test resultSpecificationModelAT430BTemperature rangeRT~400℃Temperature accuracy±0.2℃Temperature resolution0.1℃Heating time＜30 minTemperature recovery time＜4 minTime accuracy0.01sStandard dieTungsten carbideDiameter: Φ2.095±0.005mmLength: 8.000mm±0.020mmFeed cylinderInner diameter: Φ9.550±0.025mmLength: 160mmDiameter of pistonΦ9.475±0.015mmLength of piston head6.350±0.100mmMeasuring range0.1～100g/10minCutting modeManual or automatic, selectableStandard test loads8 gradesPower supplyAC220V, 50Hz, 800wDimensions260mm×400mm×600mm (L×W×H)Weight60kgOur CompanyPacking&DeliveryPackageWeight35Kg Packaging Details1. The equipment is covered with film is protect it from water vapour during the trip.2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated.PaymentPayment Term T/TEXW 30% T/T in advance, paid the balance before shipmentFOBCFR(C&F) 30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdDelivery Time7~10days after receiving payment for one containerContecting Us
