1150-1250MHz 50W Anti Uav Drone Lora Digital Source Signal Modules with Circulator
Basic Info.
Model NO.
ZD-LPA-1150/1250M-50W
Support Network
WiFi GPS GSM
Information content
Data
Certification
ISO
Condition
New
Frequency Band
Customized
Output RF Port
N-F
Power Current
DC+32V
Vcc Power Supply Reference
48V/50A
Gain
50±2dB
Input Vswr
<=1.5
Transport Package
by Box
Specification
170*94*26.5mm
Trademark
ZD TECH
Origin
China
HS Code
8517709000
Production Capacity
2000pieces/Month
Packaging & Delivery
Package Size
25.00cm * 20.00cm * 10.00cm
Package Gross Weight
1.000kg
Product Description

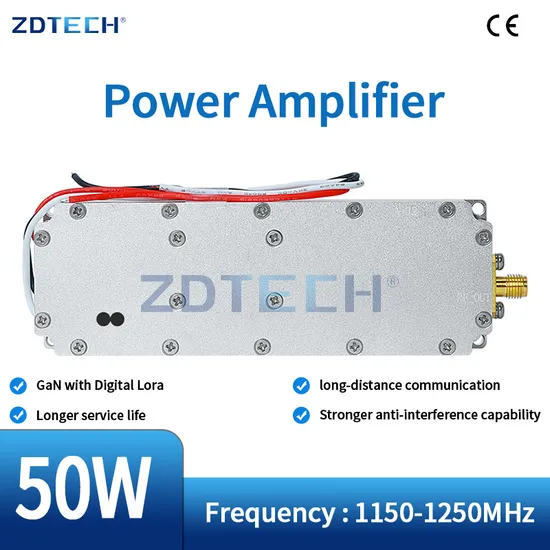

Detailed PhotosProduct Description 1150-1250MHz 50W Power Amplifier
Product Features
• Frequency from 1150-1250MHz
• Class AB GaN design
• Instantaneous wide bandwidth
• 50 Ohm Input/Output impedance
• Small size and Light weight
• High reliability and Ruggedness
1. RF technical parameters
| Item name | Technical parameters |
| Working frequency | 1150-1250MHz |
| Saturated output power | 50±1dBm |
| Gain | 50±2dB |
| In-band fluctuation | ≤2.0dB |
| Out-of-band spurious | 9kHz~1GHz:≤-36dBm/30kHz |
| 1GHz~12.75GHz:≤-30dBm/30KHz | |
| Input VSWR | ≤1.5 |
| Gain temperature stability | ≤±1.5dB |
| Working voltage | DC+32V |
| Working current | ≤8A |
| Power supply monitoring interface | Power supply: 7W2 power seat |
| A1:32V A2:GND Pin1:PA_SW Pin2:TEMP_ALM Pin3:NC Pin4:NC | |
| Pin5:VSWR_ALM (Warning note: normal 3V, alarm 0V)2c3x``1zwz | |
| Output RF port | N-F |
| Dimensions | 170×94×26.5mm |
| Working temperature | -10~+55ºC |
| Output RF port | N-F |
| Dimensions | 170×94×26.5mm |
| Working temperature | -10~+55ºC |
