High-Efficiency Cashew Nut Shelling Machine, Production Capacity Soars.

Product Description

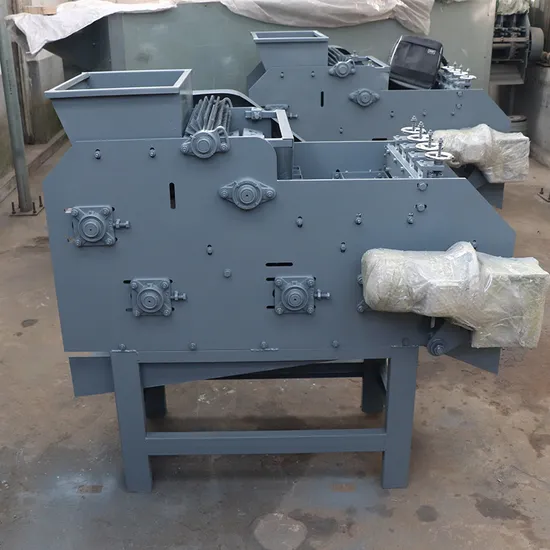

The cashew nut shelling machine is mainly composed of a transmission device, a feeding device, a pushing device and a cutting device. First, the cashews are placed in the feeding unit. Cashews fall into the hole, fall into small funnels, fall onto rails. Then, under the action of the push plate and the lever, the cashew enters the gap between the upper and lower blades. Finally, the shell is cut under the action of the blade to achieve the effect of peeling. According to the actual cracking situation, the blade gap can be adjusted appropriately. Before the cashew nut cracking machine is operated, the parts of the machine should be checked for looseness.
The following is the workflow of a cashew nut shelling machine. Raw material screening and preparation: The harvested cashew nuts are preliminarily screened to remove impurities, bad fruits and fruits that are too large or too small. Ensure that the size of the cashew nuts entering the hulling machine is relatively uniform to improve the efficiency and effectiveness of hulling.
Feeding: The screened cashew nuts are conveyed to the feed port of the shelling machine through manual or automatic feeding devices, and enter the shelling machine evenly and stably.
Shelling: Inside the shelling machine, there are mainly extrusion, shear, impact and other shelling methods. In the case of the extrusion type, for example, the cashew nut enters between two rollers that rotate in opposite directions and have an adjustable gap, and as the roller rotates, the cashew nut is squeezed and the shell breaks.
Shell kernel separation: The mixture of cashew kernel and shell after hulling enters the separation device. Taking advantage of the difference in specific gravity, the lighter husks are blown away and the heavier kernels fall by winnowing, with the help of the airflow generated by the fan. The screening method can also be used to separate the kernel from the crushed shell by using screens with different pore sizes.
Kernel collection and packaging: The separated cashew kernels are collected by the collection device, and then manually inspected to pick out cashew nuts or impurities that have not been removed from the shell. Qualified cashew kernels are packaged according to specifications and enter the market circulation.
Parameters:

	HX-8	-2	-4	-6	HX-10	HX-14
yield	200-260KG	35-45KG	60-90KG	150KG	260-340KG	350-450KG
Number of fruits opened	8	2	4	6	10	14
Dimensions(M)	1.45×1.33×1.55	1.45×0.5×1.2	1.45×0.5×1.2	1.45×1×1.55	1.45×1.7×1.55	1.45×1.3×1.55
The weight of the whole machine(KG)	480	200	200	420	560	520
Motor power(KW)	1.5	0.75	0.75	1.1	1.5	2.2
voltage(V)	380/220±5%	380	380	380/220±5%	380/220±5%	380/220±5%
frequency(HZ)	50	50	50	50	50	50
Open shell rate	90-95%	90-95%	90-95%	90-95%	90-95%	90-95%

If you have any needs, please contact me. You are welcome to customise our products.
