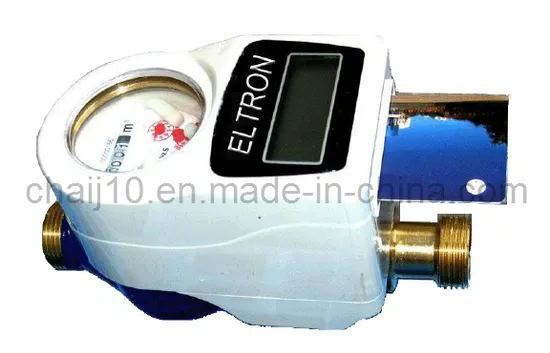

LXSZ Smart, AMR, GPRS Wireless, IC Card Prepaid Prepayment Water Meter

Product Description

Name: IC Card Prepaid Water Meter, Smart, AMR, GPRS Wireless
Model: LXSZ-15-25
Detailed information
This type water meter is smart water meter used to measure the total volume of cold water which passing through the pipeline, with wireless and IC card prepaid functions.
Mechanical Features:
. Multi-jet vane wheel type
. Wet dial
. Clear, straight and long term reading
. Measuring accuracy in conformity with ISO 4064 class B Standard
. Selected high quality materials for steady & reliable characteristics
. Low head loss
. Water meter and Ball valve is a whole part
Smart Features:
. Computerizing management and billing by water supply companies
. Combined wireless and IC card prepaid functions
. Effective anti-theft design
. LCD (liquid crystal display) and alarm
. Low energy consumption design
. Special technology to ensure no worry about illegal copy of IC card
. Data remaining duration more than 10 years

Main technical data
DN (mm)	Class	Qmax	Qn	Qt	Qmin	Min. reading	Max. reading
		m3/h		l/h		m3
15	B	3	1.5	120	30	0.0001	99999
20	B	5	2.5	200	50	0.0001	99999
25	B	7	3.5	280	70	0.0001	99999
Dimensions and weight
DN (mm)	Length (mm)	Width (mm)	Height (mm)			Connecting Thread D	Weight (kgs)
15	195	85	115			G3/4 B	1.5
20	195	85	115			G1 B	1.7
25	225	98	132			G1-1/4B	3.9
