Sdcad Brand Planetary Concrete Mixer for Dry Mortar Mixing Plant

Product Description

Product Overview

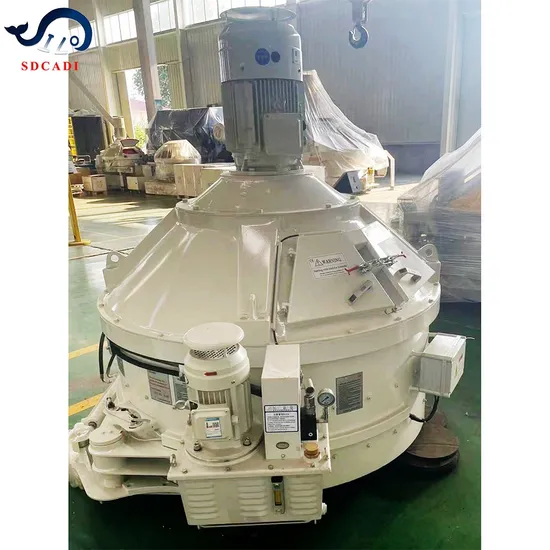

Planetary Concrete Mixer
MP series planetary concrete mixer used for mixing concrete .It is not only applies in common concrete ,precast concrete but also in high performance concrete. Planetary Concrete Mixers widely apply to produce precast concrete, common commercial concrete and high performance concrete. It is suitable for mixing dry hard concrete (roller compacted concrete). It is widely used in the production of building blocks and prefabricated parts, and also can be used to produce of steel fiber reinforced concrete, color concrete and dry mortar, etc.
We also could customize observing door, skip hopper, extended funnel with bag breaker for bag, cement weighting device and water metering device according to customers' requirement.
FEATURES AT A GLANCE
Our Advantage Customized service:Unique top opening design.Position and size of the feeding inlet according to the customer's needs.
Capacity :50L~1500L
♦Durable chill cast wear sleeves and paddles
♦Hard wearing chill cast tiles for wall and floor
♦Heavy duty discharge door mechanisms
♦Spring tensioned mixing arms for safety
♦Motor and gearbox are located on top of the mixer for easy cleaning and maintenance
Full Process Solution Provider of SDCAD
MP50 MP250 MP500
MP750 MP1000 MP2000 SDCADI Planetary Mixer Features
* Optimum Homogenization of mixing materials.
* Adopt special high-strength, high-reliability planetary reducer with patent.
* Simple Structure, Simple and Convenient Maintenance.
* Flexible Layout, 1-3 unloading doors are optional for different production lines.
* Dustproof movable covers assisted by gas springs.
* Interlocking device and safety switch on every movable cover.
* Interchangeable wear-resistant liners with counter sunk fixing bolts.
* All on-board engineering is protected in PVC-coated metal conduits and connected to a heavy-duty aluminum junction box.
PRODUCT CONFIGURATION
Mixing Locus Diagrams This diagrams show the perfect mixing action of the SDCAD planetary mixer from 5 to 60 seconds after material is added. Note that the floor is completely swept by the mixing stars action every 4 revolutions (6 seconds) and that each zone is covered at regular intervals in time.
Reduction Gearbox Maintenance Access Mixing Device
The hydraulic power unit Hydraulic Unit Water spray pipe Mixing Pan with Wear Linings
SDCAD Planetary mixer is meticulously engineered with high-strength structural steel and durable wear-resistant lining plates.Our planetary mixer achieves a stringent control of the roundness and flatness error of the mixing drum, ensuring a maximum deviation of only 2-3mm for pristine discharge. The lining plates of our planetary mixer are carefully selected to cater to the specific mixing requirements of diverse raw materials. These include high-chromium alloy cast, PE polymer,
surfacing, stainless steel, and other suitable options, depending on the specific raw materials to be mixed.
PRODUCT SPECIFICATIONS

Model	MP330	MP500	MP750	MP1000	MP1500	MP2000	MP2500	MP3000
Output Capacity (L)	330	500	750	1000	1500	2000	2500	3000
Input Capacity (L)	500	750	1125	1500	2250	3000	3750	4500
Input Mass (kg)	800	1200	1800	2400	3600	4800	6000	7200
Mixing Power (kw)	15	18.5	30	37	55	75	90	110
Discharge Power (kw)	2.2	2.2	2.2	3	3	4	4	4
Lifting Power (kw)	4	4	7.5	11	15	22	--	--
Skipper Capacity (L)	580	870	1300	1740	2610	3480	--	--
Skipper Mass (kg)	870	1305	1950	2610	3615	5220	--	--
Skipper Speed (m/s)	0.25	0.25	0.25	0.25	0.25	0.25	--	--
Weight (kg)	1700	2000	3500	6000	7000	8500	10500	11000
Dimension (mm)	1910 * 1590* 1747	2220* 2071* 1880	2581* 2336 * 2195	2891* 2602* 2217	3223* 2902* 2425	3625*3230* 2630	2893* 3550* 2695	3893* 3550* 2975

Packaging and Transportation
Our Services 1.According to your inquiry, We will reply to you in 24 hours.
2.Best After-sales: We will send the technical personnel to the site for installation, commissioning and training work.
3.Warranty period 12 Months, in addition to the force majeure and man-made factors, the damage caused by design, process and manufacturing equipment, the seller is responsible for sending people to offer free repair.
4.We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original,authentic, quality goods.
