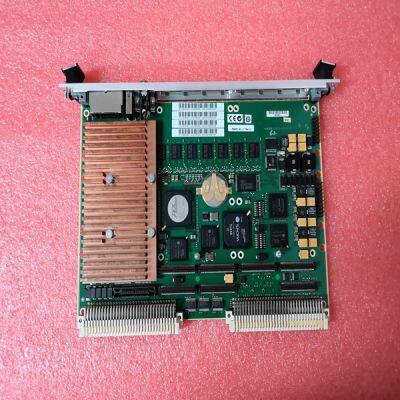

MVME7100

Product Details

Product Description

Product Description
Brand:MOTOROLA
Type:MVME7100
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
Make sure that SM Link Cable TK852V010 is connected before hot-insert and OLU. The SM Link Cable TK852V010 can be replaced if needed, except during hot-insert and OLU. Removing the cable results in a diagnostic error and the cable must be repaired or replaced. Non-SIL and SIL1-2 applications are not affected by synchronization of SM811. They continue to execute as normal throughout the entire synchronization without being interrupted. A Hot Swap of SM811 requires the two safety modules to be connected with a synchronization link, used to transfer the application state. During a hot swap it is not possible to download a new configuration from Control Builder, the controller is reserved. The Control Builder user is notified with an information dialog. The reservation is released when the hot insert is concluded or aborted. If a configuration download is ongoing, then the hot insert starts after the download is completed.
Key Features • Provides one PROFIBUS DP port, (a DB9 female connector located on the TP851 Baseplate). • Simple DIN-rail mounting • The CI851 handles cyclic read and write messages to the slaves on the PROFIBUS DP. The minimum cycle time can be 1 ms, however, but this will depend on the baud rate used and the number of attached slaves. • By using repeaters it is possible to connect a maximum of 124 nodes to one PROFIBUS DP (32 nodes are permitted on one segment). • Pre-set, two-letter Alpha code locking device installed in unit base prevents mounting of incompatible components. Description CI851 / TP851 is used for connecting to remote I/O. Via an external gateway on PROFIBUS DP, field instruments (on PROFIBUS DP) can be connected to AC 800M. The TP851 Baseplate has one female DB9 connector for connecting PROFIBUS DP. The baseplate has a code lock, see Table 4 on page 75, that prevents the installation of an incorrect type of unit onto the TP851 Baseplate. The CI851 expansion unit contains the CEX-Bus logic, a communication unit and a DC/DC converter that supplies appropriate voltages from the +24 V supply, via the CEX-Bus. The PROFIBUS DP must always be terminated at the two outer nodes.
