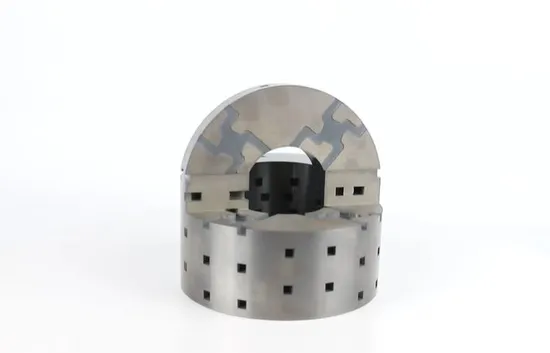

Tunsten Carbide Wear Part for Multistage Pressure Reducing Labyrinth Valve

Product Description

SEED is the leading manufacturer and exporter of tungsten carbide components, Nozzles radial bearings, as well as provide machining service and hardfacing processes based in China, with a branch office set up in Houston dedicated for North American's market in sales and customer support, we are able to manufacturing all kinds of tungsten carbide parts and wear parts based on your drawing and material specification requirement for difference industry application.
No-Standard Size Cemented Tungsten Carbide Rings
Applications :
We are manufacturing Cemented Tungsten Carbide Wear Parts for use Oil & Gas and other Industry.
Features:
Aseeder Cemented tungsten carbide wear parts have a variety of specifications, processed and made with high quality raw material. It has the characteristics of high temperature resistance, corrosion resistance, abrasion resistance, high precision and so on.
Recommended tungsten carbide grade list

Aseeder Grade	Co (Wt %)	Density (g/cm3)	Hardness (HRA)	TRS (≥N/mm²)
ZY11-C	9.0-11.0	14.33-14.53	88.6-90.2	2800
ZY15-C	15.5-16.0	13.84-14.04	85.6-87.2	2800
ZY15X	14.7-15.3	13.85-14.15	≥89	3000
ZY20	18.7-19.1	13.55-13.75	≥83.8	2800
ZY06X	5.5-6.5	14.80-15.05	91.5-93.5	2800
ZY08	7.5-8.5	14.65-14.85	≥89.5	2500
ZY09	8.5-9.5	14.50-14.70	≥89	2800
ZY10X	9.5-10.5	14.30-14.60	90.5-92.5	3000
