US$6,500.00-7,500.00
|
1 set
(MOQ)
|
Basic Info.
Usage
Sauce Jam Paste Syrup.Ect
Timing Device
Without Timing Device
Customized
Non-Customized
Dimension
1900*1100*1600mm
Gas Consumption
LPG:3.6kg/H; LNG:3.5kg/H
Mixing Speed
Rotation: 8-40rpm; Revolution: 4-20rpm
Transport Package
Wooden Case
Production Capacity
1000/Month
Product Description

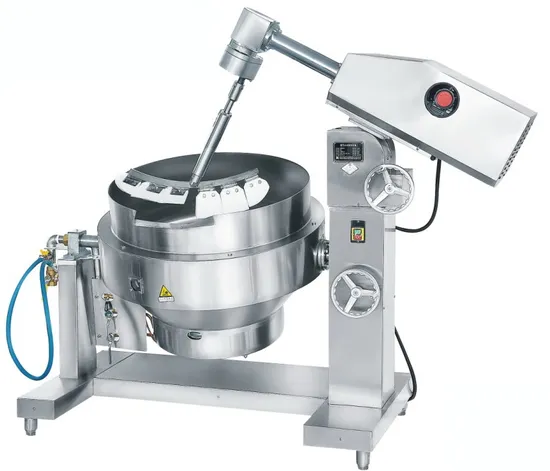

Stainless steel gas heated agitated tilting kettle Product Description
1. All stainless steel structure, whole closed structure without gap
2. Pot body adopt thickening 304# stainless steel
3. Special saving burner with the feature of sufficient burning and high thermal efficiency
4. Inner Heat-resisting insulation device, thermal efficiency can reach More than 70%
5. Tiltable pot is convenient to pour the food and clean
6. Mechanical arm can cook evenly
7. Large workload, continuous operation, lessen operator reduce working intensity
Detailed Photos
Product Parameters
Model | Volume | Gas consumption | Power | Mixing speed | Dimension | Hot load |
XYZDCG-150 | 150L | LPG: 3.6kg/h LNG: 3.5kg/h | 0.55kw/380v | Rotation:8-40rpm Reversal:4-20rpm | 1900*1100*1600mm | 46.5kw=40000kcal/h |
XYZDCG-200 | 200L | LPG: 3.6kg/h LNG: 3.5kg/h | 0.55kw/380v | Rotation:12-60rpm Reversal:8-40rpm | 1900*1100*1600mm | 81.4kw=40000kcal/h |
XYZDCG-300 | 300L | LPG: 6.3kg/h LNG: 6.2kg/h | 1.5kw/380v | Rotation:12-60rpm Reversal:8-40rpm | 2670*1300*2060mm | 81.4kw=70000kcal/h |
XYZDCG-400 | 400L | LPG: 6.3kg/h LNG: 6.2kg/h | 1.5kw/380v | Rotation:12-60rpm Reversal:8-40rpm | 2670*1300*2100mm | 81.4kw=70000kcal/h |
XYZDCG-500 | 500L | LPG: 6.3kg/h LNG: 6.2kg/h | 1.5kw/380v | Rotation:12-60rpm Reversal:8-40rpm | 2670*1300*2150mm | 81.4kw=70000kcal/h |
Packaging & Shipping
Standard shipping wooden box
Company Profile
Our factory has been established for more than 20 years, owns a 20,000squaremeters industry zone. We have more than 2000 workers and 10 producing lines.
Our Advantages
· Engineers available to service machinery overseas.· One year after sale service for all the machines we produce.· Parts for free within one year after sale.· Lifetime technical support.
