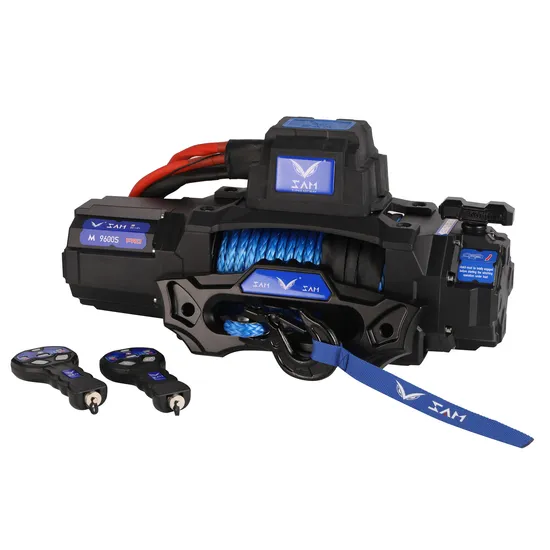

10000lbs Synthetic Rope DC12V 24V Recovery Winch

Product Description

Strong 12000lbs recovery winch with synthetic rope
Product Description
Advantage:
1. Motor: High performance series wound motor.
2. Brake: Automatic brake in the drum.
3. Solenoid: 500A solenoid
4. Gear: 3-Stage planetary gear made of 20CrMnTi material, hard enough and reduce speed perfect.
5. Clutch: Smooth clutch fell comfortable when operating.
Product Parameters

Specification
Item	M12.5S
Rated Line Pull	12500lbs(5681kgs) single line
Motor	Series wound 6.0hp/4.4kw 12V DC
Gear Train	3 stage planetary
Gear Ratio	218:1
Braking Action	Automatic in the drum
Fairlead	4-way roller fairlead
Synthetic Rope	10.5mmX26m
Drum Size	2.5″x 8.9″(64mm x 226mm)
Dimensions	21.6″x 6.3″x 8.6″(546mm x 160mm x 218mm)
N.W.	61.6lbs(28kgs)
Mounting Bolt Pattern	10″x 4.5″(254mm x 114.3mm)
Packing	620mm x 360mm x 260mm, 420pcs/20' container

Company Profile Factory and Showing Room:
ZHME owns more than 18000m2 factory including 150 works and 150m2 showing room.
Technical Department:
ZHME technical department is in charge of research and development, improving products.
Die Casting Workshop:
ZHME has own die casting workshop which can die cast winch support, gear box, aluminum fairlead and other accessories.
CNC Center:
ZHME has own CNC ceter which can process winch parts such as support, gear box, fairlead, etc..
Assembling Line:
ZHME has own auto assembling line where can assembly more than 500pcs winches every day.
Testing Facilities:
ZHME has motor facilities of motor, solenoid, winch pull, speed and electric current.
