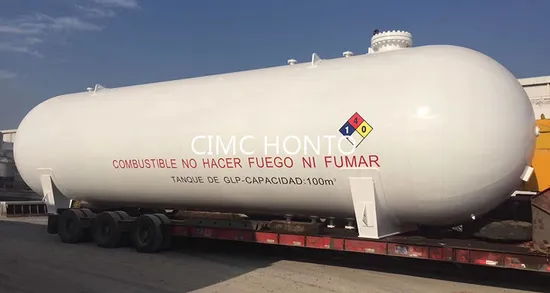

Hot Sale 100m3 LPG Propane Gas Storage Tank Price Bullet for Kenya

Product Description

Product Description
LPG Storage Tank
HONGTU has the design & fabrication capacity of LPG stationary storage tanks including above-ground tanks, underground tanks and mounded tanks etc. All kinds of tanks could be customized according to the customers' requirements.
Design Standard:
ASME BPVC VIII-1 2017 ; NB/T47042-2014 GB/T150-2011 TSG 21-2016
Vessel Capacity:
0.5m3~1000m3
Main Material:
SA-516, SA-612,Q370R etc.

Above-ground LPG Storage Tank

I.Chinese Standard
Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness
10m3	φ1600×2370×5300mm	3400kg	4035kg	Shell 8.53mm/Head 8.51mm
20m3	φ2200×2970×5680mm	5150kg	8070kg	Shell 11.35mm/Head 11.33mm
32m3	φ2200×2970×8850mm	7200kg	12920kg
40m3	φ2470×3240×8843mm	8780kg	16410kg	Shell 12.62mm/Head 12.59mm
50m3	φ2470×3240×10903mm	10420kg	20180kg
63m3	φ2470×3240×13623mm	12600kg	25420kg
80m3	φ3100×3800×11170mm	16700kg	32280kg	Shell 15.58mm/Head 15.87mm
100m3	φ3100×3800×13850mm	20000kg	40350kg
120m3	φ3400×4104×13840mm	24500kg	48400kg	Shell 17.35mm/Head 17.31mm
150m3	φ3400×4104×17140mm	29800kg	60500kg
200m3	φ3800×4560×18324mm	40100kg	80700kg	Shell 19.27mm/Head 19.22mm

Main Material	Q345R	Design Pressure	1.61Mpa
Hydraulic Test Pressure	2.22Mpa	Working Pressure	≤1.61Mpa
Corrosion Allowance	1mm	Design Temperature	-20~50ºC
Life Expectancy	20years	Working Temperature	-20~50ºC

Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.

II.ASME Standard
Capacity	Diameter x Height x Length	Tank Weight	Payload	Thickness
10m3	φ1600×2440×5308mm	3850kg	4630kg	Shell 11.09mm/Head 11.02mm
20m3	φ2200×3050×5690mm	6920kg	9260kg	Shell 14.86mm/Head 14.78mm
32m3	φ2200×3050×8860mm	9750kg	14820kg
40m3	φ2470×3320×8851mm	11930kg	18530kg	Shell 16.56mm/Head 16.47mm
50m3	φ2470×3320×10911mm	15420kg	25470kg
60m3	φ2470×3320×13001mm	16600kg	27790kg
80m3	φ3100×3960×11178mm	22820kg	37060kg	Shell 20.53mm/Head 20.41mm
100m3	φ3100×3960×13858mm	27430kg	46320kg
120m3	φ3200×3542×16100mm	26100kg	51000kg	Shell 20.14mm/Head 10.07mm
150m3	φ3300×4210×18158mm	39930kg	69480kg	Shell 21.79mm/Head 21.66mm

Main Material	SA-516 Gr.70	Design Pressure	1.724Mpa
Hydraulic Test Pressure	2.25Mpa	Working Pressure	≤1.724Mpa
Corrosion Allowance	1mm	Design Temperature	50ºC
Specific Gravity	0.545@15ºC	Working Temperature	-20~50ºC

Notes:
Above exsited design capacities for you to choose from. If you have any other different requirements, we could also provide you with customized design.
LPG Mounded Tank
Certifications
Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called HONGTU, and branded as HONTO) has made prominent contributions to the development of China's aviation industry since established in 1971 as the AVIC Corp II factory No. 322. Now, Hongtu as a key enterprise under China International Marine Containers (Group) Ltd. (CIMC) (ranked the 68th in China's Top 500 businesses), is engaged in R & D of normal temperature storage & transportation equipment, cryogenic storage & transportation equipment, EPC services, chemical equipment and other types of energy chemical storage & transportation equipment. The Company has more than 1,300 employees, including approx. 200 R&D professionals, and has workshop area totaling 130,000 m2.In the 1980s, HONGTU entered into the industry of hazardous chemicals storage & transportation equipment manufacturing based on the advantages of aviation technology, providing customers with individualized and integrated solutions in the fields of hazardous chemicals'storage & transportation, gasification in cities/towns and vehicle/vessel's oil-to-gas transformation.The Company always leads the development of the industry. The production and sales of "HONTO" Brand LPG tanker has been ranking No.1 in China in the past 36 years. The domestic market share of HONGTO reaches over 60% all along. HONGTU has been engaged in the manufacturing of energy and chemical storage & transportation equipment for over 3 decades and is also China's only LPG full-industrial chain equipment manufacturer and solution provider.The Company has ASME "U" and "U2" Stamps Qualification and all Chinese National Permits for design, manufacture and installation of various pressure vessels, spherical tanks, urban gas pipeline projects and marine fuel tanks, and has developed and drafted a number of national standards on pressurized and non-pressurized products of China.The Company provides global customers and partners with safe, efficient and value-added energy and chemical storage &transportation equipment under the concept of providing service in the full product life cycle and creating values for customers, through the three-in-one marketing mode of brand communication, product sale and lifelong service, and is committed to become a leading competitive supplier with in the field of global energy chemical industry."HONTO" brand LPG storage and transportation equipment has been distributed to more than 40 countries & regions in North America, South America, Southeast Asia, South Asia, Middle East and Africa, etc.
Our Advantages
01 Powerful R&D Ability
HONGTU has been rated as "Hubei Province Technical Center for Pressure Vessels", "Hubei Province Workstation for High-skilled Talents", etc. We have acquired more than 120 patents through the "Producing, Learning and Researching" practice, and frequent technical communications and cooperation with China Standardization Committee on Boilers and Pressure Vessels, China Classification Society, Tsinghua University, Shanghai Jiao Tong University, Zhejiang University, Fuzhou
University, Huazhong University of Science and Technology, YPDI(Nanjing Yangzi Petrochemical Design Engineering Co., Ltd.), Burg Industries B.V., TGE GAS INVESTMENT SA, Department of Energy Business(DOEB in Thailand), Australia MLI company, and other Government agencies at home and abroad, Universities, famous companies in the industry.
02 Top Expert Team
We have more than 330 professional technical staff, 30 senior engineers(including 5 Researcher-level Engineers), about 500 staff who are multi-skilled technical talents and senior technicians, 9 outsourced experts and professors employed in the industry. We are the Editorial Board of the China National Boards of Supervision Regulation on Safety Technology for Transportable Pressure Vessel; We have participated in the compiling of many other standards, such as Road Tanker for Liquefied Gas, Road Tankers for Cryogenic Liquid, Supervision Regulation on Safety Technology for Transportable Pressure Vessel, Road Tanker for Dangerous Liquid Goods Transportation.
03 Strong Production Capacity
HONGTU has been facilitated with more than 2000 sets of equipment, such as plasma cutting machines, US Lincoln welding machines, welding robots, all kinds of large and medium-sized rolling machines, beveling machines, cranes, heat treatment furnace, NDT equipment, 2000 tons of spherical shell press machines and other large heavy equipment. Among them, there are more than 200 sets of testing equipment.
04 Comprehensive Industrial Chain Solution
HONGTU has been engaged in manufacturing of energy and chemical storage & transportation equipment for over 3 decades. Focusing on the production, storage and transportation, application and intensive processing of upstream, midstream and downstream liquefied petroleum gas industry chain, HONGTU forms complete industrial equipment cluster from oil refining device, spherical tank, large scale flat bottomed vertical tank to mounded type tank, from lightweight and large-volume liquefied gas tanker to core equipment manufacturing of various types of end applications and engineering application, is China's only LPG whole industry chain equipment manufacturer and solution provider.
05 Scientific and Reorous QA&QC System
HONGTU has a sound quality assurance system and perfect quality control procedures. Products from the entry of raw materials to the delivery to the user must pass 111 quality control points, 243 quality control procedures and 47 procedure document reviews. Annual radiographic inspection films of the products exceed more than 400,000 copies and each product quality files keep for more than 20 years, so each weld quality can be tracked. HONGTU continues to carry out the LEAN Management, introduce the ONE module, passes the HSE system(quality, occupational health and safety, environment) certification and realizes the comprehensive management of information, quality and workers in the manufacturing site.
06 Professional International Services and Marketing Network
HONGTU has its own international business network and a sound international business organization structure, including 50 plus professionals engaged in technical service and overseas marketing, dedicated to providing overseas customers with technical consultation, business negotiation, product service, personnel training and a full range of integrated solutions services, and has built a three-level service assurance system comprised of salesperson, engineer and professional service personnel.
