Factory Customized Full Automatic Semi-Auto Pet Perform Blowing/ Blow Molding Plastic Bottle Making Machine

Product Description

Factory Customized Full Automatic Semi-Auto Pet Perform Blowing/ Blow Molding Plastic Bottle Making Machine
Description:

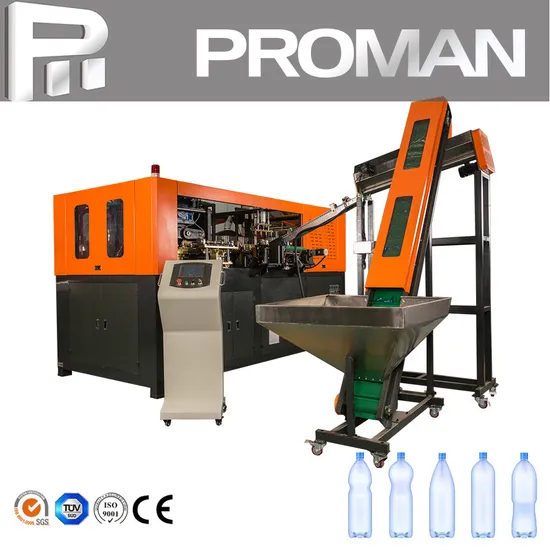

The Automatic PET bottle blowing machine is suitable for the production of 0.1L-5L plastic containers and round and square bottles.
Fully automatic blow molding machine, freeing hands all the time, automatically adding preforms, automatic molding.
PLC controller, easy to operate, make different molds according to different customer products, and produce suitable products.
The whole Automatic PET bottle blowing machine adopts SS304 material, and the thickness is higher than that of the same industry machine,more efficient.
Flow chart:
PET preform→Autoloader→Reheater →Molding→ Bottles
Features:
1. Stable performance with advanced PLC.
2. Conveying preforms automatically with conveyor.
3. High safeties with security automatic-locking apparatus in each mechanical action, which will make the procedures turn into a state of safety in case of a breakdown in certain procedure.
4. No contamination and low noise with the air cylinder to drive the action instead of the oil pump.
5. Satisfaction with different atmospheric pressure for blowing and mechanical action by dividing the blowing and action into three parts in the air pressure diagram of the machine.
6. Strong clamping force with high pressure and double crank links to lock the mold.
7. Two ways of operating: Automatic and manual.
8. Safe, reliable, and unique design of the position of valve to make the air pressure diagram of the machine easier to understand.
9. Low cost, high efficiency, easy operation, easy maintenance, etc, with automatic technological process.
10. Contamination is avoided for the bottle body.
11. Easy installation and starting
Technical parameter:

Model	Item	PM-A2	PM-A4	PM-A6	PM-9000	PM-12000
Productivity	Depend on bottle design	1800-2200PCS/H	3500-4200PCS/H	5500-6300PCS/H	8000-9200PCS/H	11000-12200PCS/H
Product type	Volume	0.1-2.0L	0.1-2.0L	0.1-2.0L	0.1-0.75L	0.1-0.75L
	Body diameter	≤100mm	≤100mm	≤100mm	≤100mm	≤100mm
	Height	≤310mm	≤310mm	≤330mm	≤330mm	≤330mm
	Neck diameter	≤38mm	≤38mm	≤38mm	≤38mm	≤38mm
Mold	Cavity	2	4	6	6	9
	Mold thickness	240mm	240mm	240mm	240mm	240mm
	Mold volume	260*240*370mm	510*240*360mm	640*240*360mm	640*240*360mm	840*240*360mm
Main machine power	Electrical source power	380V/220V 50/60Hz	380V/220V 50/60Hz	380V/220V 50/60Hz	380V/220V 560/60Hz	380V/220V 560/60Hz
		3Phase	3Phase	3Phase	3Phase	3Phase
	Rated power	25kw	49kw	73kw	97kw	127kw
	Really use power	6.5kw	13kw	25kw	32kw	52kw
Air system	HP air compressor	1.6m³/min3.0MPa	3.0m³/min3.0MPa	6.0m³/min3.0MPa	6.0m³/min3.0MPa	8.0m³/min3.0MPa
	LP air compressor	1.0m³/min1.0MPa	1.6m³/min1.0MPa	2.0m³/min1.0MPa	2.0m³/min1.0MPa	2.0m³/min1.0MPa
	Air tank	0.6m³3.0MPa	0.6m³3.0MPa	1.0m³3.0MPa	1.0m³3.0MPa	1.0m³3.0MPa
	Air dryer	1.0m³/min3.0MPa	2.0m³/min3.0MPa	6.0m³/min3.0MPa	6.0m³/min3.0MPa	8.0m³/min3.0MPa
Cooling water	Water Chiller	3HP	3HP	5HP	5HP	8HP
Machine	Size(L*W*H)	1900*1280*1930mm	1900*1860*1930mm	4100*1400*1800mm	4100*2200*1800mm	4700*2600*1800mm
	Weight	2000kg	3600kg	4200kg	4800kg	5700kg
Preform unscrambler	Size(L*W*H)	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm	2000*950*2480mm
	Weight	500kg	500kg	500kg	500kg	500kg

Certifications:
1.How to tell us your enquiry? You can contact us by email, phone call, fax, Instant Messenger (Trademanager, WhatsApp, Skype) and let us know your requirement.

2.Where is your factory? Our Factory is located in Zhangjiagang City, it is very near to Shanghai and Wuxi (airplame and train both available). If you arrive at Shanghai or Wuxi, we can pick you up to visit our factory.

3. Do you have any technical supports with your Beverage Filling Machines? Yes, We have a professional team of engineers who owned many installation, debug and training experiences abroad, are available to service machinery overseas.

4.What's your guarantee or the warranty of the quality if we buy your machines? We offer you high quality machines with 1 year guarantee and supply life-long technical support.
