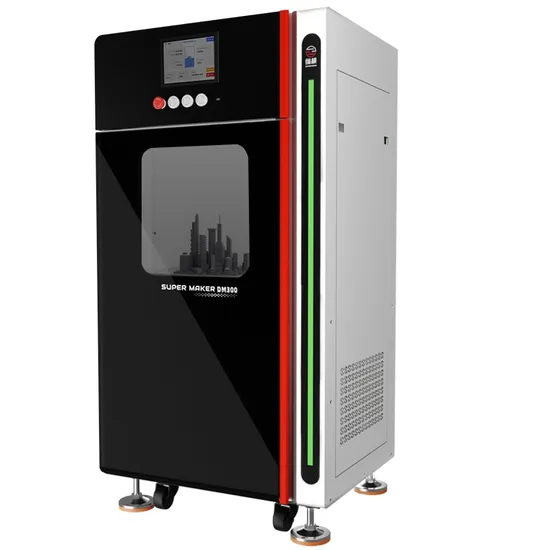

Dm-300 Top-Down DLP 3D Printerpremium Industrial Precision for Detailed and Accurate Prototyping

Dm-300 Top-Down DLP 3D Printerpremium Industrial Precision for Detailed and Accurate Prototyping

US$14,980.00
1-2 set
US$13,000.00
3+ set

Basic Info.

Model NO.
DM300
Size
740*820*1440mm
Thickness
0.03-0.15
Speed
6-8 Seconds Per Layer
Connections
USB
Operating System
Zongheng Embedded System
Software Format
.stl
Printing Material
DLP Resin, with 405nm
Operating Screen
7.0 Resistive Screen
Power Requirment
220V/50Hz
Light Source
4K405 Light Source DLP
Net Weight
240kg
Transport Package
Crate Case
Specification
740*680*1470mm
Trademark
ZONGHENG
Origin
China
HS Code
848520000
Production Capacity
20set/Month

Product Description

Printer Parameter
Product Model DLP-DM300
Printing Size 288*162*300 MM
Z Axis Accuracy 0.002mm
Net Weight
(Without Material)
240KG
Printing Speed 6-8 second/layer
Printing Technology Top-Down DLP
Light Source 4K,405nm Light Source DLP
Connection Type USB Stick
Machine Size (L*W*H) 740*820*1440mm
Layer Thickness 0.003-0.15mm
XY Resolution 75um
Power Supply 220V/50HZ
Slicing Software VoxelDance Tango
Operating Screen 7.0"Resistive Screen
Operating System Zongheng Embedded System
Printing Platform Magnetic detachable platform
Import File Format igs,stl,step
Coating system Adjustable negative pressure scraper
Warranty One Year
Tank Capacity 30KG
Resin 405nm:Model Resin, Dental Resin, Flexible resin, Jewelry Resin, High Temperature Resin, High ToughnessResin,Water Washable Resin,Transparent Resin

1. SuperMaker DM300 is DLP 3d printer developed for model resin and ceramic printing, open style, easier to adjust. 2. Suitable Projector modes: 405nm or 385nm. 3. We have created unique testing function for material testing. Do not need complex operations. Supports single-layer exposure of specified models. Parameters can be modified directly on the touch screen, and a set of curing parameters can be tested in one minute. With just a few milliliters resin, simple models can be printed to test performance. 4. It supports stl, igs, step file. 5. Scrapers: two kinds of working model, one is for without coating and pressure, use for the high sticky resin, such as ceramic resin, another one is with coating and pressure, use for normal model resin etc. 6. Equiped with various tanks with different sizes. Users can customize the tank.
