Mhc-5RS 10 Ton Jaw Cylinder Manual Claw Type Toe Jack

Product Description

MHC-5RS 10 ton Jaw Cylinder Manual Claw Type Toe Jack

It widely used in the installation and maintenance of machinery and equipment, bridges, railway tracks, transport heavy loads handing; car and tractor repair. Feature of 5T/10T/20T/30T/50T Hydraulic Jack:
· For use where exceptionally low pick up height is required
· Extra wide base for maximum stability
· Electrically welded base and cylinder assures strength and eliminates leaks
· 200° handle socket for operation from any direction
· Load can be applied to toe or head
· Capacity rated at toe and increases if load applied to head
· Complete with overload protection
· Not affected by temperature extremes
· Tested to over 150% of rated capacities

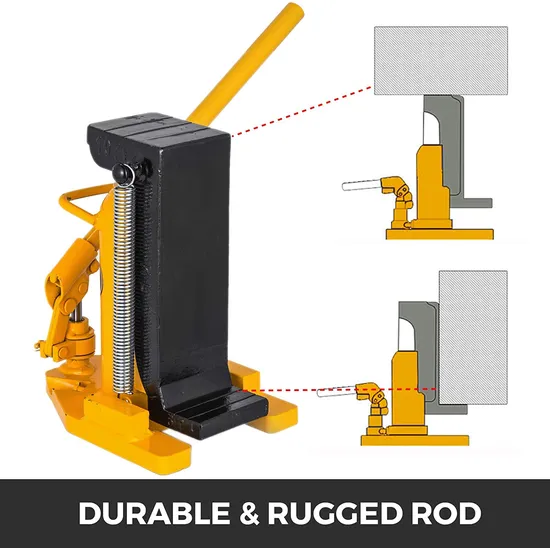

Pics of the hydraulic jack as belows:
Hydraulic toe jack product parameter as belows:

MODEL		MHC-2.5RS	MHC-5RS	MHC-10RS	MHC-15RS	MHC-25RS
Dimensionsmm		210x140x232	260x200x283	295x220x322	305x255x350	340x285x350
Toe Lifting height(mm)		20-115	20-148	25-158	30-158	50-150
Head Lifting height(mm)		20-115	20-148	25-158	30-158	50-150
Base size(mm)		210*140	260*200	295*220	305*255	340*285
Toe size (mm)		65*45	100*50	115*55	130*60	130*65
Lifting capacity	Head	5	10	20	30	50
	Toe	2.5	5	10	15	25
Weight(KG)		11.5	24.5	37	56	76

Details pics of the hydraulic jack
For more questions about the hydraulic jack, please feel free to contact us!
Sample order can be accepted!
Company Profile
Baoding Jiazhong Hoisting Machinery Plant. was founded in 1999 in Baoding. Its main development and production facility in Baoding, offers future-oriented solutions with chain systems and components for a wide range of applications.

We specializes in manufacturing standard heavy duty lifting chain (4MM -12MM), including European Standard chain for rigging, electric block chain and also undertake other special standard chain. Each lifting chain we produced was inspected by our experienced technician who had over 30 years research and producing lifting chain experience, and we also use strict quality control testing system to ensure the products' stability and durability.

Jiazhong' s primary purpose is produce heavy duty and more reliable lifting chain for lifting application to achieve superior performance and usage, withstand more abuse, high abrasion resistance, greater lifting load. Each bundle of raw materials come with alloy steel quality inspection report issued by the steelmaker, including the component analysis, production date, produced furnace number, and so on, to ensure the traceability of each batch of raw materials.

As the second largest chain manufacturer, our other hoisting machineries have a huge cost advantage. For hoisting, moving, pulling, driving and conveying, our Jiazhong lifting means, Jiazhong hoist chains, Jiazhong Chain block and Jiazhong Electric hoist are a guarantee of quality, innovation and safety.

In Tradition of Dynamic Innovation "that is in the tradition of a modern and dynamically growing family organization, the Jiazhong Group has officially been nominated as a Hidden Champion of the 21st Century because we are in our defined sectors worldwide leader in quality and technology.

Our Advantages
SERVICE PHILOSOPHY
We are pleased you are interested in Jiazhong. We deliver comprehensive and innovative services to support the life cycle of your lifting equipment.
Our aim is to enable you to concentrate fully on your core business by giving you the certainty that your equipment operates with maximum reliability and efficiency.

Training
We offer a comprehensive range of training courses that qualify your staff in proper operation, service and inspection of our industrial cranes and their components.
Develop your staff through our training courses.
We offer a comprehensive range of training courses that qualify your staff in proper operation, service and inspection of our industrial cranes and their components. We leverage our expertise, customer focus and local knowledge to continuously develop and enhance our training courses.

Spare Parts
More than 15,000 different spare parts are ready to be shipped or collected direct from our distribution center. Parts manuals and operating instructions are available on Jiazhong Shop. Jiazhong parts for unsurpassed reliability and long service life.
Our spare parts reduce maintenance requirements and ensure reliability, long service life and continuous availability of our products. Jiazhong spare parts meet the highest quality requirements and are perfectly aligned to fit our customer's needs. Our quick and reliable logistics enable our products to be supplied efficiently and effectively worldwide.

Inspection
Jiazhong Services works closely with customers to create innovative solutions that drive costs down, track expected maintenance and increase productivity.
We offer the following key offerings: Inspection, Emergency Response, and Planned Maintenance
Jiazhong Services is a national leader in providing maintenance and product solutions for all major material handling equipment. We have proven expertise with effectively providing inspection services that are tailored to customer needs and application environment.

Repair
Our Planned Maintenance and Repair services enable customers to improve safety and productivity while reducing maintenance cost. From quarterly services on a few pieces of equipment to complete on-site maintenance partnerships to service hundreds of pieces of equipment, Jiazhong Services offers customized services that deliver results. For Planned Maintenance and Repair service information, contact us.

FAQ
