Heavy-Duty Double Helix Spiral Mixer for Effortless Cleaning

Product Description

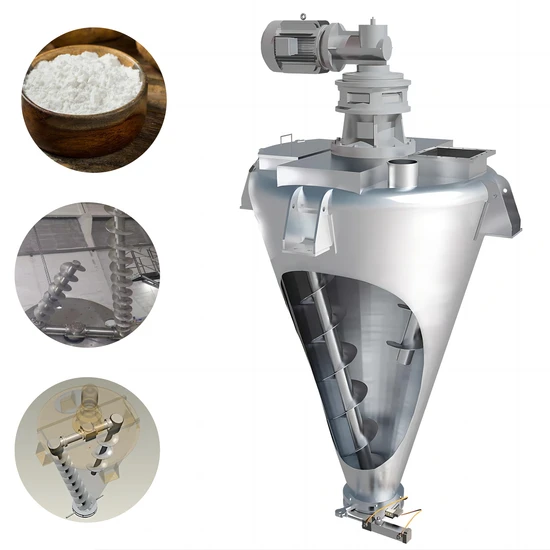

The Double Screw Conical Mixer , equipped with two asymmetrical spirals on an internal cantilever, performs both self-rotation around its own axis and revolution driven by the cantilever around the central axis of the vessel. This configuration generates four types of directional forces. The two asymmetrical spirals rotate to lift the material upwards, while the cantilever's slow revolution circulates the material in a circular motion. The coordinated rotation and revolution of the spirals draw the material inwards and disperse it outwardly in a circular path. The upwardly lifted material streams converge at the center and flow downwards, filling the void at the bottom, thereby creating an overall circulating flow.
Product Features
1. Cantilever Shaft Structure, with the bearings end not in contact with the material.
2. The gap between the agitator blades and the container wall is very small to prevent material adhesion .
3. A standardized agitator drive box ensures stable equipment operation and reduces maintenance costs.
4. Easy-Cleaning : Designed for quick and thorough cleaning between batches;
5. Durable Construction : Built with robust materials for long-term reliability;
6. Wide Application : Used across industries such as pharmaceuticals, food processing, chemicals, and cosmetics;
7. Meets high standards for complete discharge of mixed materials without residue;
8. Gentle mixing method preserves fragile materials such as crystalline substances;
9. Low-energy mixing is more suitable for material chemical reactions ;
10. The arched top cover design eliminates sanitary dead corners, making cleaning easier ;
11. Equipped with a spherical discharge valve for more thorough and stable material discharge .
Technical Parameters

Device Model	DSH-0.3	DSH-0.5	DSH-1	DSH-2	DSH-3	DSH-4	DSH-6	DSH-10	DSH-15	DSH-20	DSH-30
Effective Volume(m³)	0.18	0.3	0.6	1.2	1.8	2.4	3.6	6	9	12	18
Maximum Batch Capacity(Kg)	200	300	650	1200	1800	2500	3600	600	9000	1200	1800
Revolution/Rotation(r/min)	3.5/12	3.5/12	3/78	3/78	3/78	1.8/65	1.6/65	1/65	1/65	1/44	1/44
Drive Power(kW)	3	3	4	5.5	7.5	11	15	18.5	22	37	45
Equipment Weight(Kg)	500	600	1200	1500	2300	2520	3700	3980	4500	5500	6800
D	φ950	φ1150	φ1580	φ1950	φ2170	φ2280	φ2560	φ3000	φ3450	φ3770	φ4100
H	2060	2350	2840	3500	3760	4360	4800	5900	6680	6700	7500

Product Display Product Structure Application
The Double Cone Mixer can be used in industries such aspowder metallurgy, electrical alloys, magnetic materials, battery powders, pearlescent pigments, chemical industry, medical, and food industry
