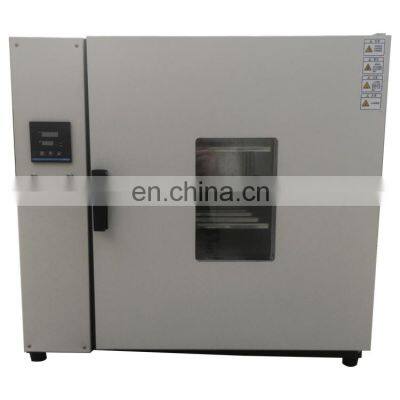

Heating and Drying Ovens

Product Description

Product Description
Product DescriptionFor factory and mining enterprises, colleges and universities, scientific research and various laboratories, etc. for drying, baking, melting wax and sterilization. Working Principle The temperature controller is composed of intelligent digital control circuit composed of integrated circuit devices and LED digital display circuit. When the temperature in the working room is measured by a K-type resistor as a sensor, a resistance signal proportional to the temperature is output (100Ω at 0°C). This signal is amplified by the digital control circuit in the temperature controller and sent to the LED display circuit all the way. Measured temperature, the other way is sent to the comparator and compared with the set value, when the two produce a positive deviation, the digital control circuit sends out a trigger signal, triggers the bidirectional thyristor conduction, and outputs electric power to heat the heating tube (or heating wire) , When the deviation decreases to zero, the double-high thyristor turns off, stops the output of electric power, the heating tube (or electric heating wire) stops heating, and the output of the heating in the digital control circuit adopts PID adjustment mode and has output power Functions such as size adjustment and correction of temperature measurement linearity of the system. The heating tube (or heating wire) is installed at the bottom of the box, and a fan (the bottom of the 101 blast drying box) is also installed at the heating tube (or heating wire). When the machine is turned on, the fan is always in operation, and the cold air flow in the working room flows in from the surroundings through the impeller and the air duct, and the hot air flow flows out from the middle, so the continuous circulation makes the indoor temperature uniform.ModelPower(KW)Inner sizeMaximum TempVoltage101-02.6350x350x350300℃220V/50Hz101-13.0350x450x450101-23.3450x550x550101-34500x600x750101-48800x800x1000380V/50HzCompany informationCangzhou Lovely Technology Co., Ltd is specialized in Nondestructive Test Instrument and Material testing machine over 10 years,Without advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which win favorable comments from customers worldwide.Cangzhou Lovely Technology Co.,Ltd. insisted on "Integrity-based, guests supremacy". Welcome customers from all over the world to visit us for business negotiation!The Foreign Trade Department of Cangzhou Lovely Group Co.,Ltd. was established.According to customers' requirements, there has the machine---CZY5 Rebar Weighing and Length Measuring InstrumentIndependent research and development and production of GW50 Automatic Rebar Bending Testing Machine.L800 Integrated Floor Thickness Gauge RBL+ Rebar Detector goes public.New product-- U900 Series Non-Metallic Ultrasonic Detector.HYE-2000 Series Microcomputer Servo Compression Testing Machine: Pad adjustment, Manual screw adjustment, Electric screw adjustment.WAW-B Micro Electromechanical Liquid Servo Universal Testing Machine.EV2 Static Deformation ModulusTester; EVD Dynamic Deformation Modulus Tester. ---Patented ProductThe factory was established, begin to produce more than 20 types instrument.Our ServicesPre-sale service* OEM customized service * Equipment installation and calibration * Free technical training for visiting factoriesAfter-sales service* 24-hour Online consulting support. * Training how to instal use the machine. * the professional after-sale service team will provide perfect technical supportPacking & DeliveryWe promise the delivey in time. And we support customize products for customers. Such as the voltage and package etc. All wooden box are suitable for exporting.FAQQ1:Are you a factory or trading company? A:We are a factory specializing in manufacturinf all kinds of tester. Q2:Where is the loading port? A:Qingdao port or tianjin port. Q3:What’s the MOQ of the product? A:Different item has different MOQ.normally one stand is preferred. Q4:What certificates do you have? A:We have ISO 9001. Q5:Do you have an OEM service? A:Yes.We can provide OEM and ODM services as your requirements. Q6:How long is the production cycle after ordering? A:General it is about 7-20 days. Q7:What is the payment method? A:T/T payment is preferred and other payment terms is accepted. Q8: Could you support to customize?A: Yes, we could customize the package and Voltage as request.Hot Sales
