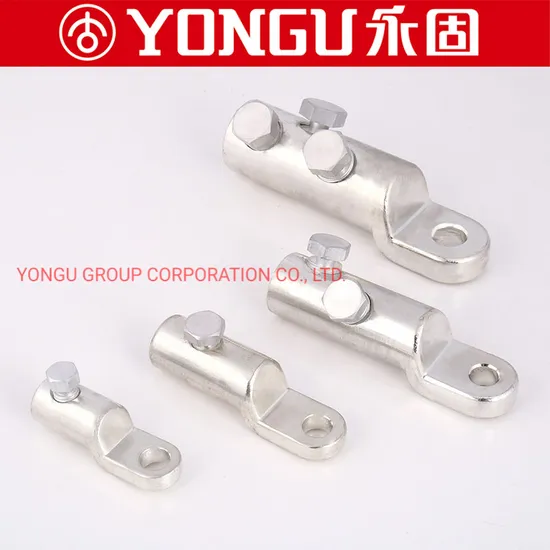

Blmt Aluminum Mechanical Terminal Cable Lugs with Shear off Head Bolt

Product Description

Technical Requirements
Material: Aluminium alloy Surface treatment: Acid cleaning or tin plated Product property: It use spanner instead of hydraulic tool to finish installation.The special eccentric design for round conductor ensures enough anti-wrench strength and conductivity.The bolt has two shear ends A and B(Note:A is shorter than B). The boltsand nuts are specially designed to install on large range of conductors.When installing,you can choose the suitable end and tighten it until it breaks.The barrel capped is filled with joint compound to avoid oxidization.and its type test is in accordance with IEC61238-1.

SPEC.	CONDUCTOR CROSS-SECTION(mm2)	NO. OF SHEAR HEAD BOLT	AF
BLMT-16/70-13	16-70	2	13
BLMT-25/95-13	25-95	1	13
BLMT-35/150-13	35-150	1	17
BLMT-95/240-13	95-240	2	19
BLMT-120/300-17	120-300	2	22
BLMT-185/400-17	185-400	3	22
BLMT-500/630-21	500-630	3	27

Commpany Introduction:
Founded in 1985. Its products cover power transmission and distribution material products such as power fittings, cable accessories, insulators, copper and aluminum materials, and also transmission and distribution equipment products such as circuit breakers on primary and secondary fusion columns, disconnectors, fuses, and arresters. it is a power transmission and distribution system service provider integrating R&D, manufacturing, sales and services. The company is shortlisted as a Class A supplier of State Grid, China Southern Power Grid, and Inner Mongolia Electric Power.
Yonggu Electric Power Fittings Laboratory is a nationally accredited laboratory by CNAS. The scope of accreditation involves nearly 80 national standards and 110 testing items, covering nine categories of power fittings. The laboratory has a total area of more than 3,500 square meters, and has introduced German Spectrometer, FEI scanning electron microscope, X-ray digital imaging detection system, optical image detection system, 600kN horizontal tensile testing machine, 300kN vertical tensile testing machine, microcomputer digital display automatic sample injection analyzer, 4000A temperature rise thermal cycle test equipment, 50kV AC high voltage testing machine, metallographic microscope and handheld XRF analyzer, Fourier transform infrared spectrometer and a series of advanced detection equipment.
