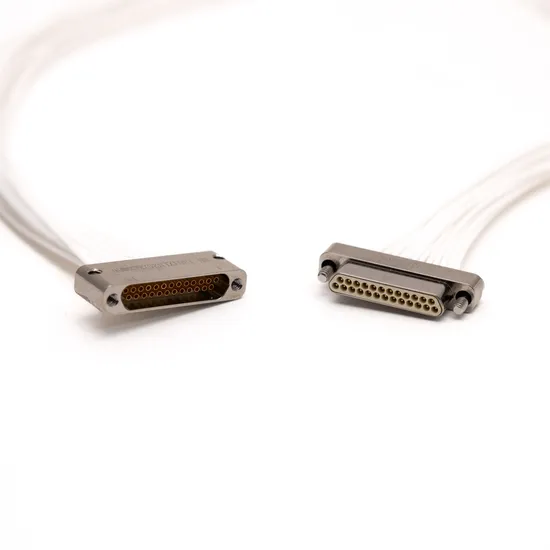

J30jz Series Rectangular Adapter Connector Micro-D Electrical Connectors

Product Description

Product Description J30J J30JZ J56 Series polarized housing with welded or non-removable pressure contacts, ultra-small rectangular electrical connectors.
Its connectors have high current capability, low contact resistance, high dielectric strength and excellent shock and vibration resistance, while offering high pin density, small size and lightweight body to meet the stringent requirements of different applications and harsh environments. The machinery is strong and durable.
Commonly referred to as the Micro-D connector system, the connector can be used in a variety of systems, including aerospace electronics, radar, Advanced Soldier technology systems, MIL global positioning systems, medical devices, and downhole drilling tools. J30J SERIES J30JZ SERIES J56 SERIES Use environment
- Vibration: frequency 10-2000Hz,196m/s2
- Random vibration: power spectral density 0.4G2/Hz total speed root mean square value of 23.1G
- Impact :980m/s2 11ms
- Operating temperature: -55ºC~+125ºC
- Mechanical life :500 cycles
Electrical performance
- Rated current: 3A
- Contact resistance: ≤10mΩ
- Insulation resistance :≥5000MΩ
- Medium voltage: 800V
Surface coating
- Nickel plating (48h salt spray)
- Stainless steel passivation Main Products
Company Profile
Quality Control
Certifications
Partners & Exhibitions
Packaging & Shipping
FAQ 1.What are your advantages?
Complete product range, excellent quality, fast delivery, high cost performance, advanced production equipment and testing equipment, professional sales team. Professional teams do reliable things.
2.Can you provide OEM services?
We can accept OEM orders. The materials, design, color and size will be produced according to your requirements. After the first sample is accepted or the process documents are signed and confirmed by both parties, the batch orders will be put into production.
3.Can you send me samples for reference?
Of course, for regular products, we can send samples to you for free. You only need to pay the freight.
4.How about your normal delivery time?
Usually, our regular products have sufficient inventory. Inventory products can be delivered quickly. But for some customized products, depending on different orders, the delivery time will be 6-25 days.
