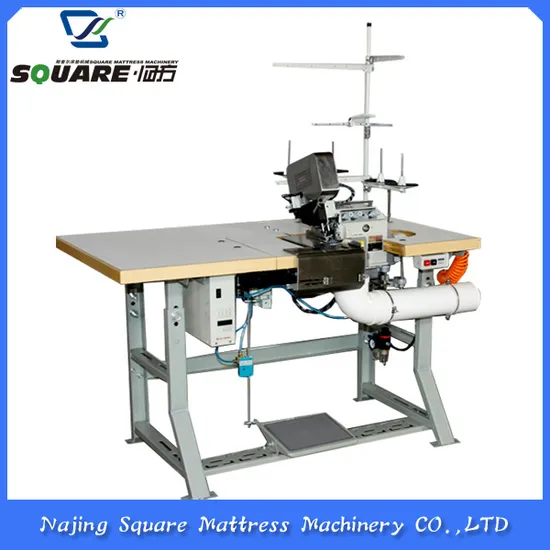

Japan Pegasus Sewing Head Mattress Overlock/Flanging Machine

Product Description

Main application and performance:
With this mattress machine, mattress quilt and hand-pulling fabric may be overlocked and sewn-up together simultaneously. This flanging machine is developed out with compound feeder of upper simultaneous belt and bottom feed dog. The mattress machineis with increased sewing-thickness capacity, more stable feed and faster sewing speed. Stitch made with this machine can be more beautiful.
Main Technical Data:

Sewing head type:	PEGASUS
Max Sewing Thickness:	80mm
Max Sewing Width:	25mm
Presser Foot Lift Height:	16mm
Stitch Pitch:	0~6mm (Free Adjustment)
Max Available Sewing Speed:	5000 stitches/min
Upper feed belt avalible:	double-bar
Rated Pressure:	0.5~0.8Mpa
Motor Power:	750W

Our Services:
1. After-sale service:
Installation & Commissioning: The seller can provide the installation, commissioning and training
service in buyer's factory, while the buyer needs to pay for VISA application, air ticket, accommodation,
(if necessary) interpreting fee for seller's technician.
2. Warranty:For the machine above,the seller provides one year warranty starting from the moment
the seller dispatches the machines. For the detailed guarantee period of each part, please refer to the operation manual.Wearing parts,consumption material and the damage incurred by the buyer's incorrect operation are out of warranty range.
FAQ:
Voltage: Please pay attention to your country's voltage,
China is 220v 1phase 50Hz / 380v 3phase 60Hz. If different, please inform us in advance.
Our company:
Nanjing Square Mattress Machinery Co., Ltd. (also named Nanjing Sifang Mattress
Machinery Factory) was established in 1990. We are a specialized manufacturer of
complete line mattress & sofa spring equipment. Our present products cover 10 series
and more than 60 models. Our present factory covers an area of 35,000sqm with a
14,000-square-meter workshop.
Presently, our company is running strictly in terms of ISO90001:2000 quality system. Our
products sell well not only in China but also far in Europe, South America, North America,
Australia, the Middle East, Asia, Africa, and other countries and regions all over the world. Our products make us win customers' trust and recognition widely. Our annual export
volume is increasing rapidly. Any of your contacts or visits is sincerely welcomed. We look
forward to making cooperation with you in the near future!
