Outdoor Optical Fiber Cable All Dielectric Self-Supporting Fiber Optic Cable ADSS

Product Description

Outdoor Optical fiber cable All Dielectric Self-Supporting Fiber Optic Cable ADSS

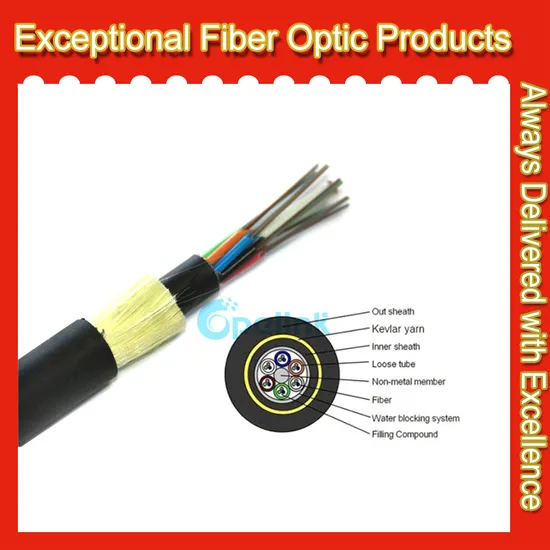

Description: All Dielectric Self-Supporting Fiber Optic Cable ADSS is loose tube stranded. 200um or 250um Bare Fibers, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. It is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Application:
1.Long distance telecom, LAN in high voltage area or access to telecom network;
2.For power transmission system, much thunder areas and high electro-magnetic inerference.
Features: 1.Non metallic structure provides good insulation, excellent lightning resistant.
2.Proper design, precise control for fiber excess length and distinct stranding process render the cable excellent mechanical and environmental properties.
3.Anti-electromagnetism ability.
4.Use high intensity aramid yarn as anti-pulling component, strong, light and small cable diameter, suitable for different climatic situation and installation span.
5.Special AT (Anti-Track) outer sheath protection, strong anti-electro-corrosion ability.
Mechanical Parameters:

Ref. of outer diameter mm	Ref. weight kg/km		Ref. Max workingtension KN	Max allowable working tension KN	Break strength KN	Strength member CSA mm²	Modulus of elasticty KN/mm²	Heat expansion coefficient×10-6/k
	PE	AT
12.5	125	136	1.5	4	10	4.6	7.6	1.8
13.0	132	142	2.25	6	15	7.6	8.3	1.5
13.3	137	148	3.0	8	20	10.35	9.45	1.3
13.6	145	156	3.6	10	24	13.8	10.8	1.2
13.8	147	159	4.5	12	30	14.3	11.8	1.0
14.5	164	177	5.4	15	36	18.4	13.6	0.9
14.9	171	185	6.75	18	45	22.0	16.4	0.6
15.1	179	193	7.95	22	53	26.4	18.0	0.3
15.5	190	204	9.0	26	60	32.2	19.1	0.1
15.6	194	208	10.5	28	70	33.0	19.6	0.1
16.3	211	226	12.75	34	85	40.0	20.1	0.1
16.8	226	242	15.45	41	103	48.0	24.0	-0.4
17.2	236	253	16.2	45	108	51.0	25.1	-0.5
17.9	249	266	18	50	120	58.8	26.1	-0.8

note:For more details, please contact our sales
-----------------------------------------------------FAQ------------------------------------------------------
Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?
A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
