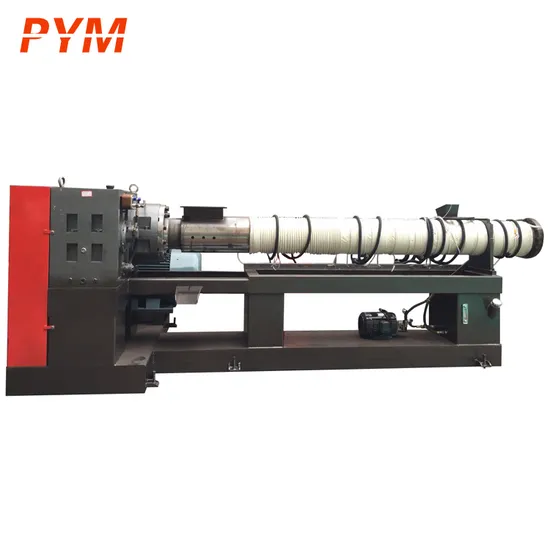

CE Standard Plastic Granulating Machine

Product Description

Advantage :
1.It adopt latest advanced technology , design with simple structure and easy to operate,high production capacity, economy energy consumption, reliable performance. 2.The material component of each machine on our products with high quality ,ensures whole washing line with long service life time.
3. our screw barrel is specially designed according to your case, so we ensure the machine is working all right with your materail.
4. our gearbox in hard tooth surface, after carburizing, quenching and gear grinding
technique. our gear wheel and bearing parts are made by 20CrMnTi and 20CrMnMo material in high degree. our gearbox is in heavy weight, so in normal use it can be used for very very time, even forever.
5. our screen changer is non stop type, you do not need to stop.
6. we have exported a lot recycling machine to Latin America, South-east zone, and middle- east zone. Our clients is welome it a lot.

Main technical parameters:

The Main/ First stage	1. Screw and barrel Screw dia150mm, L/d 22:1, one set, based on 38CrMoALa material(HV >=950-1100) 2. Gearbox ZLYJ 2803. Motor 45KW, the brand is Huadong, made in Shanghai, quite a good brand in China 4. Inverter 45KW, the brand is Painier, quite a good brand in china 5. Screen changer with hydraulic pump,250mmx250mm
The Auxiliary/ Second stage	6. Screw and barrel Screw dia130mm, L/d 10:1, one set, based on 38CrMoALa material(HV>=950-1100) 7. Gearbox ZLYJ 200 8. Motor 18.5KW, the brand is Huadong, made in Shanghai, quite a good brand in China 9. Inverter 18.5KW, the brand is Painier, quite a good brand in china 10. Screen changer with hydraulic pump, 250mmx250mm
The other parts:	11. Cutting machine in speed change, 4kw ,one piece, (the knife is made in alloy ) the knife is 200mm width, with 24 pieces 12. Water tank, one piece, in stainless 13. Electrical box, one piece, the brand is Chint, famous brand in China 14. Container, one piece 15. heating ring: ceramic heating

Our advantage of company: A> long time experience and history B> long time nitriding treatment and heating treatment by itself C>advanced Fanuk series CNC computer-controlled milling machines D>depth hole drilling machine in 18meters length, which ensure the Straigtnss of barrel inside. E> CAD drawing confirmation before start making F> Prompt after sale service G>Land owner and registration capital 25, 000, 000RMB H> prompt after-sale Packaging of recycling machine Wooden case package Plastic film package Term of payment: L/C. T/T. Western union. And so on. FAQ: Q1: What we are? A: We are factory, with license import and export goods by ourself. Q2: Guarantee time and after-sale? A: One year guarantee time, after one year, we have professional after-sales department Providing best service if any problems. Office : Zhejiang pinbo plastic machinery co.,ltd is located in ruian wenzhou city with brand of PYM(Former Ruian yumin machine screw co.ltd since 1988). The company is specialized in making screw barrel, gearbox zlyj series, t die, filter and extruder machine. It has become one of the largest supplier of main parts in Ruian city which is the basement of plastic machines.
Thanks for your visiting. Hope to cooperate with your esteemed company. Welcome to contact us~ Thank you! Once we have a chance to cooperate together, we would supply you high quality products and supply long-term technical support & perfect after-sales service.
