100mm Prefabricated Vertical Drain (PVD) Production Line with Online PVD Coating Machine

Product Description

100mm Prefabricated Vertical Drain (PVD) production line with online welding unit
Equipment list
1.SJ-90/33 single screw extruder machine 1 set Max extrusion capacity 250kg/h
2.Machine mould 1 set (Width of the finished product 100 mm )
3.Cooling water tank 1 set
4.Haul off machine 1 set
5.Non-woven fabrics material rack 1 set
6.Guiding device 1 set
7.Shrink forming device 1 set
8.Bonding apparatus 1 set
9.Composite and tightening device 1 set
10. Haul off machine 1 set
11.Double station rewinder 1 set

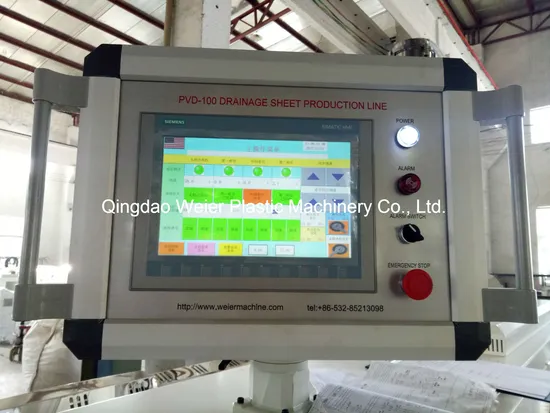

Equipment photos
Description
Prefabricated Vertical Drains, also called Wick Drains.
Prefabricated Vertical Drain(PVD) is a composite product of plastic strip with outer nonwoven geotextile layer. It is widely used for soft ground improvement due to its excellent physical, mechanical and hydraulic properties. PVD is an effective solution for soft ground treatment in minimizing the settlement issue after construction. Specification:
Thickness: 3.5mm, 4.0mm, 4.5mm.
Width: 100±2mm
Roll Length: 200mm
Applications
PVD is applied to reduce construction time and speed up the consolidation of soft ground for the following work: Improvement of dredged clay fill Road, railway and airport construction Development of building and industrial complex site Development of seaport area Bank revetment Construction of gas and oil storage facilities.
