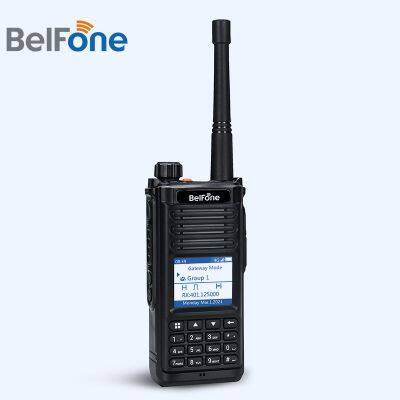

Belfone Poc+Dmr Multi-Mode Hybrid Portable Two Way Radio (BF-TP800)

Product Description

Product Description
BF-TP800 is a new advanced multi-mode radio which integrates Public broadband and narrowband PMR technology to provide critical voice and data services. It brings flexible usability of public network, private network, mixed network and gateway mode, and performance advancements like split-screen, dual PTT, GPS, recording, Bluetooth, etc., to be convenient and benefit for every aspect of radio experience.
Designed to meet diversified requirements, it ensures mission-critical reliability, accelerates workflows and keeps responders safe and effective.
Multi-mode Hybrid, Flexible Communications
A multi-mode radio works in DMR, analog and PoC (public 4G/3G/2G) mode, which could always stay in connect, to communicate whenever and wherever.
Intelligent Gateway Mode
This smart radio provides outstanding connectivity of PMR (DMR or analog) and PoC, brings all the advantages of narrowband and broadband technologies, bridging the voice communication inter different networks.
Intuitive Multi-Active Split-screen
Designed with full keypad, 1.77" transflective LCD, it offers you the choice of narrowband and broadband display Up and down.
5000mAh Extended Battery Life
It comes with a 14-hour smart lithium battery and a built-in PTC protection to take your communication even further.
Product Parameters

General
Frequency Range	VHF: 136-174MHZ; UHF: 350-390MHz/ 400-480MHz/ 450-520MHz
Channels	100
Channel Spacing	12.5KHz/ 25KHz
Working Voltage	DC 3.7V
Frequency Stability	±1.5ppm
Antenna Impedance	50Ω
Battery Capacity	5000 mAh
Battery Average Working Time 5/5/90	Public Network: 14hours; PMR Network: 11 hours
Dimension(H*W*D)	123* 60* 30mm (Excluding antenna)
Weight	300g (Excluding battery)
Network Standards	LTE-FDD: B1/B3/B5/B8; LTE-TDD: B38/B39/B40/B41;WCDMA: B1/B8 TD-SCDMA: B34/B39
Transmitter (DMR Part)
Output Power	High power: 4.0 ±0.2W; Low power: 1.0 ±0.2W
4FSK Modulation	12.5KHz data only: 7K60FXD; 12.5KHz data and voice: 7K60FXE
Modulation Limitation	±2.5KHz
Spurious Emission	-36 dBm 1GHz/ -30 dBm 1GHz
Adjacent Channel Power	≤-60dB
Adio Response	+1/-3dB
Audio Distortion	0.03
Receiver (DMR Part)
Digital Sensitivity	5% BER: 0.25 V
Analog Sensitivity	0.22uV (12 dB SINAD)
Intermodulation	60dB
Adjacent Channel Selectivity	50dB
Spurious Suppression	ETSI/TIA603: 55dB
FM Noise	40dB
Frequency Response	+1/-3 dB
Audio Power	1.5W
Audio Distortion	≤5%
Conduction Radiation	3%(typical)
GPS Precision	Horizontal Accuracy 10m (with good signal)
Environmental Specifications
Operating Temperature	-20 ~+65ºC
Storage Temperature	-30 ~+85ºC
Water Proof	IP54
Shock & Vibration	MIL-STD-810C/D/E/F
