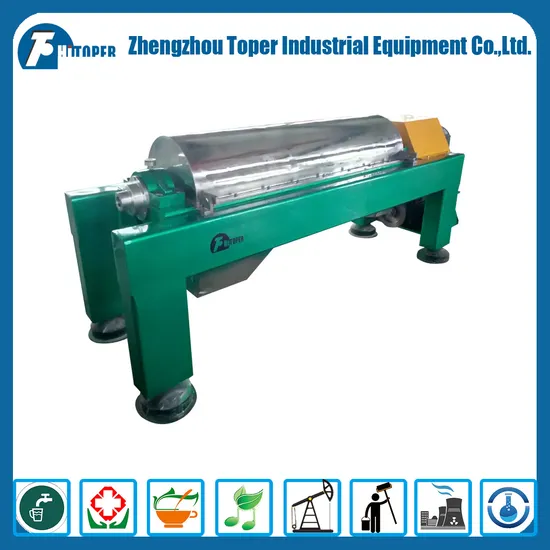

Large Volume Centrifuge Separator Decanter Centrifuge for Sludge Dewatering

Product Description

Product Description Large Volume Centrifuge Separator Decanter Centrifuge for Sludge Dewatering
Product Description
Labyrinth seal is used for both bowl ends of LW standard type decanter centrifuge, simple and convenient, after separation, the solid phase is conveyed to the solid discharge port by scroll conveyor, and discharged out of centrifuge under centrifugal force caused by high speed rotation; while the liquid phase drains out under gravity and centrifugal force through the overflow plate. This series decanter centrifuge features easily operation, continuous and stable running, and wide application scope.
Operating principle
Separation takes place in a horizontal bowl equipped with a scroll conveyor. The process material is fed into the bowl through a stationary inlet tube and is smoothly accelerated in the accelerate chamber. Centrifugal forces cause instant sedimentation of the solids on the wall of the bowl. The conveyor rotates in the same direction as the bowl, but at a different speed, thus moving the solids towards the conical end of the bowl.

LW series decanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. It has two-phase (solid-liquid) separation and three-phase (solid-liquid-liquid) separation.
Main applications: Industrial and municipal wastewater treatment
Oil gas drilling mud/fluid control
Washing, classification and dewatering of amylum and starch
Mycelium separation from zymotic fluid of antibiotic
Dewatering of soybean and wheat protein
Dewatering of fish power and fish meet
Dewatering of grains

Clarification and extraction of fruit juice
Clarification and purification for animal and vegetable oil
Production and extraction of olive oil, palm oil, avocado oil
Separation and purification for coal tar
Grading of kaolin and graphite
Classification and dewatering for dyestuff and pigment
Float wash of extractive coal and dewatering of coal mud
Classification and dewatering for minerals

Working principle
Pictures show:
Product Parameters Main technical parameters:

Model	Drum Dia. (mm)	Drum length (mm)	Length-Dia. Ratio	Rotation speed (r/min)	Separation factor (w2r/g)	Capacity (m3/h)	Motor power (Kw)	Weight (kg)	Dimension (mm)
LW220x930	220	930	4.2	5000	2835	0.5-5	7.5	1200	2420x700x1010
LW300x1200	300	1200	4.0	4000	2550	1-5	7.5-11	1500	2680x830x1280
LW355x1600	355	1600	4.5	3800	2868	1-20	15-18.5	1850	3490x860x1200
LWS400X1200	400	1200	3.0	3650	3000	1-5	15-18.5	2500	2990x960x1205
LW400X1800	400	1800	4.5	3650	3000	2-25	15-22	2500	3890x1020x1205
LWS400X1800	400	1800	4..5	3650	3000	2-10	15-22	2500	3890x1020x1205
LW450x2000	450	2400	4.4	3450	3000	3-35	22-37	3000	4297X1080X1385
LWS450X2000	450	2600	4.4	3450	3000	3-35	22-37	3000	4297X1080X1385
LW500X2000	500	2000	4.0	3000	2500	5-45	30-37	3800	4330X1140X1470
LWS500X2000	500	2000	4.0	3000	2500	5-45	30-37	3800	4330X1140X1470
LW530X2280	530	2280	4.3	2900	2500	15-65	45-55	5000	4924X1170X1540
LWS530X2280	530	2280	4.3	2900	2500	15-65	45-55	5000	4924X1170X1540
LW580X2500	580	2500	4.3	2780	2500	20-80	55-75	6500	5205X1270X1540
LW650X2800	650	2800	4.3	2500	2270	20-110	75-90	7000	4300X1900X1350
LW760X3040	760	3040	4.0	2250	2150	30-150	90-132	8500	5000X2500X1500

Company Profile
Company Information Zhengzhou Toper manufacturing base of filter equipment mainly produce full automatic or semi-automatic membrane filter press, recessed filter press, belt filter press, centrifuge, etc. All these products are widely used in mining, metallurgy, petroleum, chemical, medicine, textile, printing and dyeing, paper making, food, alcohol, inorganic salt, coal washing, and waste water processing industry.
All of Toper's products:
1. Program-controlled automatic filter press
2. Membrane filter press
3. Hydraulic compress filter press
4. Mechanical compress filter press
5. Jack filter press
6. Cast iron plate and frame/chamber filter press
7. Stainless steel plate and frame filter press
8. Round plate filter press
9. Cotton cake filter press
10. Cardboard filter press
11. DY belt filter press
12. DYX high pressure belt filter press
13. DNY rotary drum thickning/dehydrating belt filter press
14. Triple-belt thickning and dehydrating filter press
15. SS type three-foot upper discharge centrifuge
16. SD type three-foot and filter bag hoist discharge centrifuge
17. PD type filter bag hoist discharge centrifuge
18. Centrifuge of up discharge, three foot, clean series SSB
19. SX type manual top discharge centrifuge
20. PS type manual top discharge centrifuge
21. SGZ type automatic scraper bottom discharge centrifuge
22. PGZ type scarper bottom discharge centrifuge
23. LW series decanter centrifuge
24. Tubular centrifuge
25. Multi-layer stainless steel frame filter
26. Bag filter
27. Diatomite filter
28. Filter late
29. Filter cloth
30. Vacuum disc filter
Our Services 1.We have professional person on line to advise you the most suitable type of machie according to your requirement.
2.Provide you comprehensive.easy-understanding and detail information and technical data about the machie you interested;solve your confusions or questions about the machine
3.Arrange the schedule if you pay a visit to our factory
4.Send our technical engineer to your area guid the installation,debugging ,training workers and solve the problems if rquired.
Certifications
Packaging & Shipping We provide you reliable and fast package and variety kinds of transportation way to insure you get the goods in time and safely.


FAQ How to order filter press:
1.Select the model,plate and fram material,pressing mode and filtering form by considering the filter press introduction and parameters.
2.According to your products,select open flow and close flow ,washable or non-washable,and specify the conditions in the contract.
3.The unit is provided without pump.To order the unit complete pumps,state it in the contract.
4.Our company can supply non-standard model to meet your special demands.
