Mattress Solution Supplier High Speed Multi Needle Quilting Machine Manufacturer

Product Description

Product Description

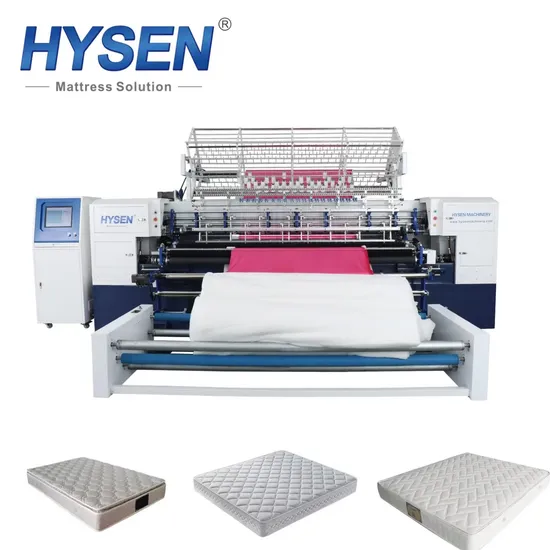

HSY118 Computerized High Speed Shuttle Multi-Function Quilting Machine,It is widely used for quilting high-quality mattresses, household ornaments,and carpet cushions, etc. The machine high running speed, low vibration, easy to operation, the high quilting precision , and the production speed is fast!
Advanced and practical thread breakage detection technology for the pasta thread, and automatic stop function for thread breakage.
Model:HSY118
Quilting width:3300MM
Production speed:70-150m/h
Main shaft speed:400-1000RPM
Gross weight:5000kg
Product Function
1.The needle rows are constructed with iron bar frame, which does not require additional oiling and avoids oil stained fabrics.
2.Adopt CAD drawing method, precise graphics, convenient and quick.
3.Four-axis drive machine is more solid performance is more stable.
4.Computer speed regulation, needle speed can reach 1000 stitches per minute, needle distance can be set arbitrarily from 2mm to 6mm.
5.Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)
6.Hand proximity to infrared sensors makes your operation safer.
7.Running status detection and prompting, the machine's operation can be seen at a glance.
Product Parameters

Model	HSY118
Dimension(l*w*h)	5600x2450x2550mm
Quilting Width	2800mm
Space Between Needle Rows	76.2
Space Between Needles	25.4
X-axis Movement Displacement	305
Quilting Thickness	≤20mm
Stitch Length	2‐6
Production Speed	70-150m/h
Model of Needle	14#/16#/19#
Main Shaft Speed	400-1000RPM
Power	7KW
Volatge	380V/50H 220V/60H
Gross Weight	5000Kg

Product Details
If you want to know more details, please click

Products Catalogue	Main Products
About Hysen Machinery	Mattress Cutting Machine

Advanced and practical up thread-break detection technology,auto-stop when thread-breaking.	The saddle and roller are driven by servo and the main shaft is controlled by frequency converter.
Multiple cross quilting (covering 360-degree and 180-degree quilting patterns)	Easy preparation of CAD drawings extremely precise.

Application Range:Mattress,Textiles,Clothing,Bed spreads,Bedding,Comforters and so on.
Our Advantages
*We are a factory with more than 20 years of manufacturing experience.
*Support for customized machines (appearance,color,size,quilting width,etc.) according to your needs.
*We have a one-year warranty.Warranty period parts damage support free replacement, excluding shipping costs.
*We provide in-home installation service.

Company Profile

Dongguan Hysen Machinery Co.,Ltd. specializes in manufacturing quilting machines, the company has standardized production plants,advanced production equipment,and a group of senior engineers and professional technical developers,forming a complete scientific research,design,production,sales and service system.We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.At present, the main products are quilting machine,automatic four-side hemming machine ,computerized panel cutting machine and tape edge machine , etc.Various products have passed the National Patent Office and CE certification.The products have been sold abroad to Asia, E-urope, America and Africa , etc.We hope we can build the good relationship with the customers all over the world.With cost-effective products and thoughtful warm service to exchange for trust and support, mutual benefit, create a win-win situation!

Packaging & Shipping

Certifications

FAQ
1.Q:Why Choose Our Company?
A:We have more than 20+ years of production experience, we supply series of product and professional service to numbers of known companies.
2.Q:How's the after-sale service?
A:We have a one-year warranty.Warranty period parts damage support free replacement, excluding shipping costs.
3.Q:ls the price offered changeable?
A. We offer reasonable price for every client, and the price is changeable according to purchasing amount.
4.Q: How about the quality?
A: The main subassembly and raw matetials are all supplied by large companies. Key parts are research and developed by our own staff. profesional assembly line work and strict quality test system can ensure your high quality reguirement.
5.Q:Availability of spare parts.
A:Spare parts we usually stock, but it depends on your needs!
6.Q:Are you a manufacturer or trading company?
A:We are a professional manufacturer holding our own intemational Trade Depalment,for that we can beter understand customers needs and ofer a reasonable price.
