Effective Particle Board Products Equipment / Chipboard Laminate Production Line HDF/MDF/Ldf / OSB

Product Description

Effective Particle Board Products Equipment / Chipboard Laminate Production Line HDF/MDF/Ldf / OSB
01:PRODUCT DESCRIPTION
Preparing Stage:DEBARKER:The logs typically retain outer bark and irregular surface layers. By using a debarker to remove the bark and irregularities from the surface of the logs, it enhances the efficiency and quality of subsequent processing.CHIPPER&FLAKING: Used to chip wood into wood chips, usually using rotating cutting tools to chip wood into wood chips of a certain size.DRYER: Remove moisture from wood chips or timber to ensure that the wood reaches the appropriate humidity and moisture content for subsequent mixing, forming, and hot pressing processes
Mixing&Forming Stage:GLUE MIXER: Equipment used to mix wood chips with adhesive and other additives uniformly, ensuring that the mixture has a certain uniformity and moisture content.FORMING: Used to press the mixed wood chips and adhesive into a board shape, usually using continuous or batch forming machines for molding.
Trimming&Cutting Stages:TRIMMING: Used to trim and edge the chipboard after hot pressing, to remove possible unevenness and excess adhesive, and to make the surface of the board flat.CUTTING: Cuts the trimmed chipboard into the required sizes and specifications, usually with both cross-cutting and longitudinal cutting methods.
Post-processing Stage:SANDING: By using sanding belts or sanding wheels to process the surface of the particleboard, it becomes smooth and uniform, thus improving the surface quality.SIZING: If it is necessary to coat the surface of the chipboard with varnish or other coatings, a gluing machine may be used.
02:FULL PRODUCT PARAMETERS

<1> Drum Chipper
Inlet size	240*750mm(H*W)
Blade quantity	2pcs
Knife roll diameter	800mm
Power	132kw
<2> Ring Chipper
Wood strands thickness	0.4-1.0mm
Capacity	5000-8000kg/h
Knife length	449mm
Power	250kw
<3> Triple Pass Drying Machine
Cpacity	10000kg/h
Original moisture	≤80%
End moisture	2%
Power	440kw
<4> Vibrating screen
Screening cloth	2
Screening area	12 m2
Screening capacity	70m3/h
Power	11kw
<5> Gluing
Capacity	500m3 /per day
<6> Forming machine
Surface forming machine	2 sets
Capacity	2 *45m3/h
Core forming machine	1 sets
Capacity	65m3/h
Forming width	1300mm
Forming thickness	30-120mm
<7> Continuous press
Convey speed	10-30m/min
Working height	1250mm
Belt width	1500mm
Power	75kw

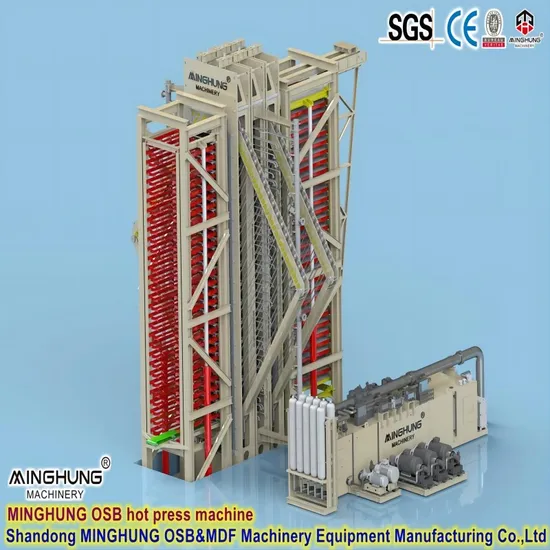

<7> Hot press
Pressure	1200 ton
Hot plate size	2650*1680*120mm
Layers	22
Heating medium	Oil
Heating temperature	≤180ºC
Closing time	10s
<8> Sanding machine
Max sanding width	1300mm
Sanding thickness	3-50mm
Sanding belt size	1350*2800mm

For this production line, it can produce 100000m3 one year.
And we can produced as your capacity requires

03:PRODUCT DETAILS


04:PACKAGING&SHIPPING

05:RELATED OSB MAKING MACHINE
Glue Blander
OSB forming line

06: AFTER SALES SERVICE
<1> Machine Installation:
We can send engineers go to install machine, degue, and teach your workers
<2> Warranty:
1 year
<3> Factory layout:
After machine production start, we can make factory layout for you
<4> If meet problem when operation machine
Contact us at the first time, our engineers will help check and solve quickly

Welcome contact us for more information if you are interested
