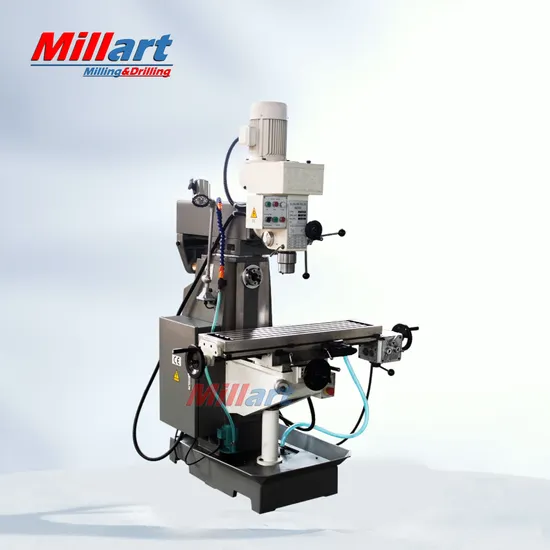

Vertical and Horizontal Milling Machine (ZX7550CW)

Product Description

Product Description
Feature:
1. Use as milling machines and drill press
2. Easily shift able gear drive ensures power transmission without losses
3. With gear spindle drive
4. Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill

Model	ZX7550CW
Max.drilling dia (mm)	50
Max.horizontal milling dia (mm)	100
Max.vertical milling dia (mm)	25
Max.boring dia (mm)	120
Max.tapping dia	M16
Distance.spindle to table surface (mm)	50-350
Spindle speeds range (r.p.m)	115-1750 (V) 60-1350(H)
Spindle travel	120
Table size (mm)	800×240
Table travel (mm)	600×210x300
Overall dimensions (mm)	1280×1100×2080
Motor (Kw)	0.85/1.5(V) 1.5(H)
N.W/G.W (Kg)	850/1000

Standard accessories:
Drill chuck
Collet chuck kits
Draw bar
Reduction sleeve
X axis auto power feed
Working lamp
Coolant system
Chip tray
Operate tools
Manuals
Optional accessories:
Y axis power feed motor
Z axis power feed motor
3 axis DRO
Air draw bar
Separately control panel box
58 pcs Clamping kits
Spindle protection
Worktable protection
Worktable swivel ±45 degree
Rotary table HV10
Dividing head BS-0
Machine vice 160mm
