High-Quality Furniture Pre-Milling Automatic Edge Bander with CE Certification

Product Description

High-Quality Furniture Pre-Milling Automatic Edge Bander with CE Certification Product Description
Main function:
Separate agent → Pre-milling → Infrared baking light 1→Two colors PUR Non-cleaning glue pot →Servo tape feeding 1→ Top Glue pot → Infrared baking light 2→Servo tape feeding 2→Heavy-duty rough trimming→Heavy-duty fine trimming→Heavy-duty scraping→Flat scraping→Single rail end cutting→High-speed Four motors corner rounding →Cleaning agent→Buffering 1→Buffering 2
Technical Data:

Model	S350C
Motor Power	21.49kw
Overall size(L*W*H)	8500*970*1850mm
Feed Speed	16-23-26m/min
Panel Width	≥ 40mm
Panel Thickness	9~60mm
Edge Tape Width	12~65mm
Edge Tape Thickness	0.3-3mm
The whole weight	4500KG

Detailed Photos

Linear guide rail lifting	Pressing wheel convey Heavy duty steel rail and beam
Used to support and guide the moving parts, reciprocating linear motion according to the given direction, suitable for high precision requirements on mechanical structures.	Using heavy steel beam and rail combination frame,no distortion during working . Ensure the stability of high-speed conveying plates and dust is not easy to pollute the conveying surface of the board, and improve the production efficiency and edge sealing quality.

Safety and limit thickness	Separating agent
Prevent misplaced board to avoid damage to the machine. Anti-pressure hand, avoid operator injury during production.	By atomizing and spraying before pre-milling, effectively preventing the hot melt adhesive from polluting the board surface during the edge banding process and reduce the workload for subsequent cleaning work.

Heavy duty rough trimming	Heavy duty fine trimming
Using high frequency and high speed motor structure, trimming the above and below excess edge material, so that the edge bander's width is consistent with the workpiece's width. It can realize one-key switching, and there is no need for technicians to adjust the tool.Directional blowing make the permanent cleanness of the working platform.	Using high frequency and high speed motor structure, trimming the above and below excess edge material, so that the edge bander's width is consistent with the workpiece's width. It can realize one-key switching, and there is no need for technicians to adjust the tool.Directional blowing make the permanent cleanness of the working platform.

Heavy duty scraping	Single rail end cutting
Scrape the ripple marks generated in the process of edge banding . Ensure the smooth edges of the plate and the surrounding parts. Directional blowing makes the working platform clean forever.	Through the precise linear guide rail movement, the automatic tracking of the profiling and the fast cutting structure of the high-frequency and high-speed motor are adopted to quickly cut off the edge bander.Ensure the smoothness of the edge surface.achieve a better edge banding effect, save the edge banding material, run faster and improve production efficiency.

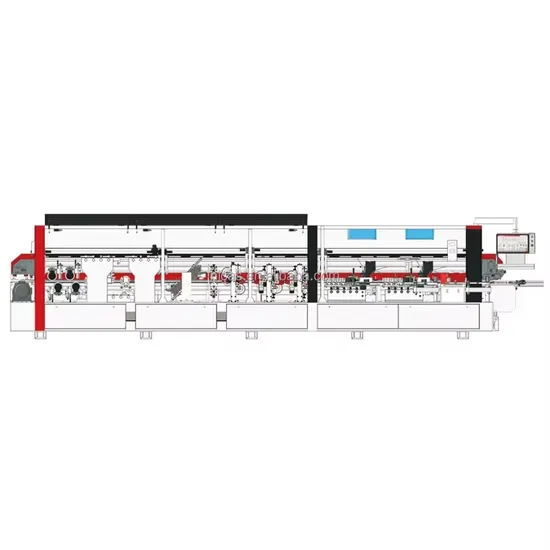

Product layout:
Final Product
Company Profile
HICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
8.Our company and products have been verified onsite by SGS Group
We are looking for Good customers like you! and Distributor or Agents Wanted!!!
9.We have many CE certifications, EPR certifications, ISO certification and product patents.
10.Our Packaging & Shipping
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request. all cost in buyer's account (the machine quotation does not include this cost), including all transportation cost between China and buyer factory (two way), visa and Insurance cost, hotel and eating in buyer country is responsible by buyer, extra labor salary USD200/day.
2. Where can we get replacement parts?
Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp/Skype around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?
Our machines has been sold to more than 20 countries all over the world, like Russia, Singapore, Uzbekistan, The USA, Malaysia, Peru, Colombia, Vietnam, Slovakia, etc.
6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese, English, Russian, Spanish, French, Germany
