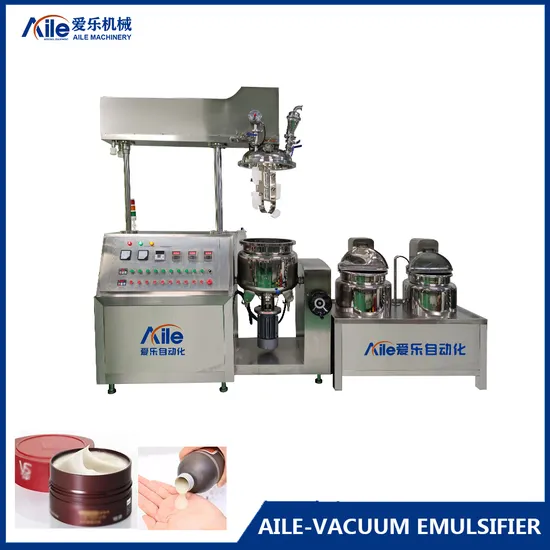

Skin Care Gel Advanced Vacuum Mixing Equipment Bubblefree Vacuum Emulsification Pot

Product Description

Product Description Intorudtion
The machine is suitable for the production of various kinds of paste, cream products in cosmetic factory and pharmaceuticalfactory. Especially designed for the production of stable emulsions creams, milk, gels, balms, lotions, ointments,toothpastes,etc. having extremely small particles for chemical, cosmetics, pharmaceutical and food industries.
Working process
The materials in the water-phase tank and oil-phase tank are heated up and stirred. After they are thoroughly mixed, they will be transferred to the emulsifying tank by vacuum pump. The material will be stirred by the upper part of the central paddle, combined with the PTFE scraper sweeping the wall, the material will be stirred thoroughly and meanwhile be pushed down to the emulsifier at the low part of the central axle. With very high speed emulsifying effect, the material will be seriously cut, sheared, and cracked into 200nm - 2um particles. The bubbles appear during the process will be sucked out promptly in the vacuum status in the tank.
Product Parameters

Volume	50L	100L	200L	300L	500L
Mixing motor power	0.75kw	1.5kw	2.2kw	3kw	4kw
Mixing speed	0-60 r/min	0-60 r/min	0-60 r/min	0-60 r/min	0-60 r/min
Homogenizer power	3kw	4kw	5.5kw	7.5kw	11kw
Homogenizer speed	0-3500 rpm	0-3500 rpm	0-3500 rpm	0-3500 rpm	0-3500 rpm
Voltage	220V/380V	220V/380V	220V/380V	220V/380V	220V/380V
Thickness	4/3/3mm	4/3/3mm	5/4/3mm	5/4/3mm	6/4/3mm
Heating method	Electric/steam heating	Electric/steam heating	Electric/steam heating	Electric/steam heating	Electric/steam heating
Lifting system	Hydraulic lifting	Hydraulic lifting	Hydraulic lifting	Hydraulic lifting	Hydraulic lifting
Inclined discharge	Manual pouring	Electric pouring	Electric pouring	Electric pouring	Electric pouring
Vacuum pump	0.81kw	0.81kw	2.35kw	2.35kw	3.85kw

Detailed Photos
Company Profile
FAQ Q1: What is the aerosol machine price?
A: Different machine have different price, price is negotiable. It can be changed according to your quantity or customization requirements.
Q2: How to install and use machine?
A:We provide installation guide (document and vedio), operations and maintenance manual.also some adjustment vedio
Q3: What kind of certificate you have?
A: Our CE and ISO9001 certifications;The aerosol line also has an explosion proof certificate
Q4:What is the longest guarantee time?
A: We offer you at least a 1-year warranty on our high-quality aerosol filling machines and lifetime technical support.
Q5: Do you provide customized service?
A: Yes. We can design the machine according to your requirements (material, power, filling, type of cans, layout of your factory,etc.).
Q6: When can I get the quotation after the inquiry?
A: In 24 or 48 hours.
Q7: What is the delivery time?
A: Generally speaking, Semi automatic machine need 15 working days after receiving the prepayment.For automatic machine, normally need 30-35 working days
Q8:What is your payment methods?
A: T/T 40% in advance.60% balance before delivery. L/C can also be accepted.
