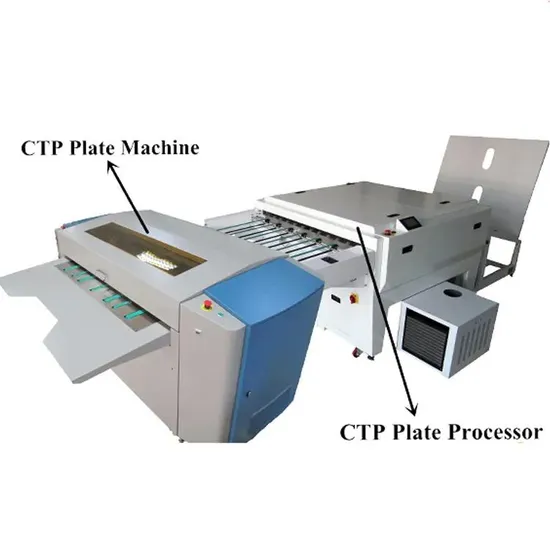

CTP Plate Making Machine Plate Manufacturing Machinery Offset CTP Plates Printing Machine
Basic Info.
Model NO.
OR-CTP 01
Usage
Offset Printing, Flexo Printing
Plate
Relief Printing
Type
CTP Plate Making Machine
Material / Metal Processed
Carbon Steel
Classification
Flat Type
Light Source
Solid State Laser
Certification
CE
Product Name
CTP Plate Making Machine
Model
or-CTP 01
Max Plate Size
670*645mm
Image Size
660*630mm
Quantity of Light
32CH
Resolution
2540dpi
Plate Thickness
0.13-2.5mm
Type of Laser
High Power Fiber Laser Source
Applied Plate
Digital Flexo Resln Plate,Thermal CT
Dimensions
1060*1600*1100mm
Weight
760kg
Transport Package
Wooden Case
Specification
1060*1600*1100mm
Trademark
ALLRAISE
Origin
China
Production Capacity
100 Pieces/Month
Product Description
Product Description CTP Plate Making Machine Plate Manufacturing Machinery Offset Ctp Plates Printing Machine:CTP series printing machine is our company through the introduction, digestion and absorption of foreign advanced technology.
The new design of the new generation of the device, features as follows:
A processing speed digitization, but stepless speed adjustment.
B submerged development, development time and development temperature adjustable.
C development has a circulating filtration system.
D microprocessor control system control time, solution, oven temperature.
E glue automatic circulation system, can control the glue or not.
F automatic cleaning and gluing roller, easy maintenance.
G province water installation, need not to consume water all the way.
H looks beautiful, easy to operate
Product Parameters CTP Plate Making Machine Plate Manufacturing Machinery Offset Ctp Plates Printing Machine:
| Model | OR-CTP 01 |
| Max plate size | 670*645mm |
| Image size | 660*630mm |
| Quantity of light | 32ch |
| Resolution | 2540dpi |
| Plate thickness | 0.13-2.5mm |
| Type of laser | High Power Fiber Laser Source |
| Applied Plate | Digital Flexo resln plate,Thermal CTP Plate |
| Data Format | 1-Btt TIFF |
| Output speed | Thermal PS plate more than 20P/h(670*645mm) |
| Dimensions | 1060*1600*1100mm |
| Weight | 760KG |
| Power | AC220V 30A 50Hz/60Hz |
| Environment | 18-26 degree.Relative humidity, non condensing |
| Model | OR-CTP Processor |
| The maximum plate size | 670*645mm |
| The plate thickness | 0.15-0.4mm |
| Time adjustment range | 10-50s |
| Working speed | 400-1380mm/min |
| Brush speed | 40-120r/min |
| Temperature control range | 18 to 40 ºC |
| Drying temperature control range | 30 to 60 ºC |
| The adjustment range of the liquid | 0-999ml 0-999ml |
| The capacity of the developing medicine tank | about 40L |
| Wash water | 10-15l/min |
| Volume (length x width x height) | 2380 x 1300 x 1050mm |
| Weight | 300 kg |
| Power supply | 220V 50HZ |
| Maximum power | 3500w |
