4ton Wrecker Mounted Hydraulic Winch for Road Towing Rescue Tool 4t Steel Wire Rope

Product Description

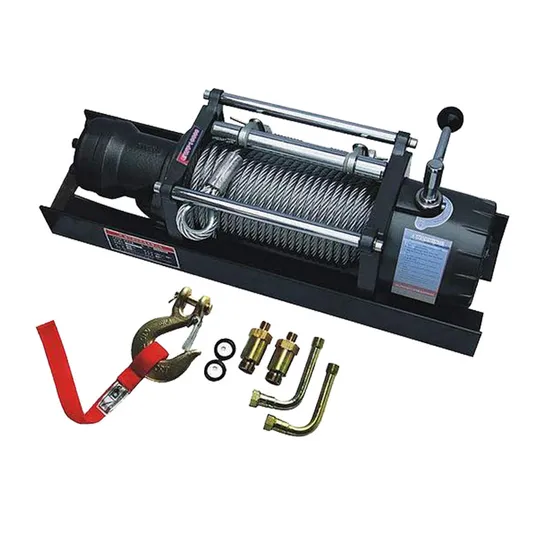

4Ton Wrecker Mounted Hydraulic Winch For Road Towing Rescue Tool 4T Steel Wire Rope
Calibration tension: 39.2kN (8818ibs)
Motor displacement: 80L / min
Flow: 15-60l / min
Pressure: 14MPa
Reduction ratio: 23:1
Wire rope size: ∅ 12mm x 25m
Drum size: ∅ 88mm x 192mm x 188mm
Mounting size and mounting screw size: 280mm x 385 (300) mm 8-m12
Overall dimension: 524mm (L) x 368mm (W) x 236mm (H)
Net weight: 48kg
Winch tension, pressure and layer flow, linear speed

SPECIFICATION HWX10000YD
Rated line pull	10000lbs(4536kgs)
Motor displacement	50ml/r
Oil flow	15~40L/min
Pressure	12.5Mpa
Gear reduction ratio	28:1
Cable (Dia.× L)	Ø3/8 "×85 ' (Ø9.2mm×26m)
Drum size(Dia.× L)	Ø2.6"×8. 5" (Ø66mm×217mm)
Mounting bolt pattern	21.7"×19.7 " ×4.5 " (550mm×500mm×114.3mm) 4-M12
Overall dimensions (L×W×H)	22.8" (L) x 7.9" (W) x 9.5" (H) 580(L) mm X201 (W) mm X 242(H) mm
Net weight Ibs(kgs)	96.3 / 43.7

Pull, Speed, Pressure, Flow (First layer)
Line pull lbs(kgs)	Pressure Mpa(Psi)	Flow G/min(L/min)	Line speed ft/min(m/min)
0	2.0(290.1)	4.0(15)	7.2(2.2)
4000(1814)	3.9(565.6)	6.6(25)	12.5(3.8)
6000(2722)	7.5(1087.7)	9.2(35)	17.7(5.4)
8000(3629)	10.5(1522.8)	10.6(40)	20.0(6.1)
10000(4536)	12.5(1812.9)	/	/

Line Pull and Rope Capacity Inlayer
Layer of wire rope	Rated line pull lbs(kgs)	Total rope on drum ft (m)
1	10000(4536)	17.4 (5.3)
2	7969(3615)	39.4 (12.0)
3	6624(3005)	65.0 (19.8)
4	5667(2571)	85.3(26.0)

5t Capstans Hydraulic Winch Special for Tow Truck Wrecker VehicleHWN050YD(HWN050YDII)Rated tension 4990Kgs (5T)Working speed 5.6m/minRope capacity 26mSpecification of steel wire rope Φ 10.2*25.5mNumber of steel wire rope layers fourRated pressure 12.5MpaRated flow 40L/minMotor displacement 65ml/LReduction ratio 26:1Installation hole spacing 254MM * 114.3mm 4-m12 boltOverall dimension(length * width * height) 519mm*235mm*246mmNet weight 53Kg Tow Truck Hydraulic Winch 8T HWH080 For Road Recovery Wrecker VehicleTow Truck Hydraulic Winch 8T
HWH080(HWH080II)Rated tension 8000Kgs (8T)Working speed 4m/minRope capacity 32mSpecification of steel wire rope Φ 14*32mNumber of steel wire rope layers threeRated pressure 15MpaRated flow 50L/minMotor displacement 65ml/LReduction ratio 38:1Installation hole spacing 300mm * 380mm * 386mm 8-m14 boltOverall dimension(length * width * height) 665mm*486mm*370mmNet weight 130Kg
FOB$1400~$2000USD
Tow Truck Hydraulic Winch 8T HWH080 For Road Recovery Wrecker Vehicle
Brand model Runva Runhua brand 20t winch obstacle removal vehicleRUNVA HWE200 WITH STEEL CABLE Rated Line Pull: 44,000LB (20,000KG)
(HWE200S) HWE200
Rated tension 20000Kgs (20T)
Working speed 6m/min
Rope capacity 50m
Specification of steel wire rope Φ 26*40m
Number of steel wire rope layers 5
Rated pressure 17Mpa
Rated flow 120L/min
Motor displacement 315ml/r
Reduction ratio 36:1
Installation hole spacing 532mm * 160mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 1158mm*512mm*420mm
Net weight 380Kg
FOB$4500~$5800USD
RUNVA HWE150 WITH STEEL CABLE
HWE150
Rated tension 15000Kgs (15T)
Working speed 6m/min
Rope capacity 55m
Specification of steel wire rope Φ 22*40m
Number of steel wire rope layers 5
Rated pressure 17Mpa
Rated flow 120L/min
Motor displacement 250ml/r
Reduction ratio 40.6:1
Installation hole spacing 522mm * 180mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 1030mm*500mm*415mm
Net weight 300Kg
FOB$3800~$4500USD
10t Winch Obstacle Removal Vehicle Mounted
10t Winch Obstacle Removal Vehicle Mounted
HWE100
Rated tension 9800Kgs (10T)
Working speed 7m/min
Rope capacity 60m
Specification of steel wire rope Φ 18*40m
Number of steel wire rope layers 4
Rated pressure 17Mpa
Rated flow 60L/min
Motor displacement 200ml/r
Reduction ratio 37.8:1
Installation hole spacing 522mm * 180mm * 280mm 8-m20 bolt
Overall dimension
(length * width * height) 665mm*486mm*370mm
Net weight 130Kg
FOB$2500~$3200USD
