Yk-60 Swing Wet Granulator Chinese Herbal Medicine Granule Powder Granulator Machine

Product Description

Product Description

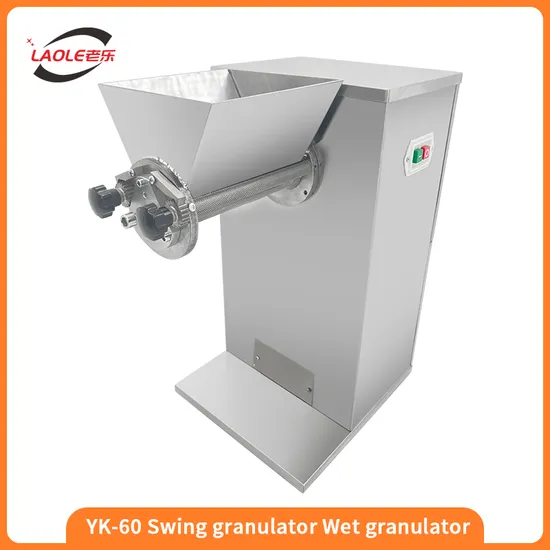

YK-60 Wet Granulator Machine, Chinese Herbal Granulation Swing Granulator Machine
Function Introduction:
Swing granulator is used to develop wet powder into the required particles, and can also crush block shaped dry materials into the required particles.
1. This machine uses the swinging effect of a rotating drum to grind wet raw materials into particles through a sieve.
2. In the field of chemical drugs, it is used as a mixed powder that has not been ground into granules, dried for compression into tablets, and can also be crushed and solidified into blocks during storage or formed into blocks during chemical processing. In the planning of the food industry zone, it is used to process candy and sugar mixtures, as well as malt milk and other products. In other industries such as ceramics and plastics, the mixture becomes molded particles.
3. It is not suitable for solid, liquid, slurry, or ground use.
4. The machine comes with a sieve, and the mesh size of the sieve should be determined according to the particle size requirements. Please let us know if it is installed properly
Main features: The screen mesh is easy to assemble and disassemble, and can also be adjusted for tightness. The seven corner drum is easy to disassemble and clean. The mechanical transmission system is completely enclosed within the body and equipped with a lubrication system, ensuring smooth operation of the entire machine. The speed of the rotating seven corner drum can be adjusted.
Recommended products
Product Parameters

Model	YK-60
Drum diameter	60mm
production capacity	20-30 (kg/hour)
Swing amplitude	>360(degrees)
number of rolls	46 times/min
mouth	209×212
Motor Power	0.55KW
Voltage:	220V
weight	60kg
Dimensions	320×560×600 (mm)

Detailed Photos
Our Advantages



Our factory
Our Factory
Shanghai Laole Machinery Equipment Co., Ltd. Main sales:
1. Customized die for single punch tablet press, rotary tablet press, flower basket tablet press and tablet press.
2. Flat packaging machine (capsules, tablets, pills, liquids, pastes, etc.) We can produce mold effect drawings according to customer's requirements.
3. Small bag flexible packaging machine (granule packaging machine, powder packaging machine, liquid paste packaging machine) Capsule filling machine (semi-automatic capsule filling machine, automatic capsule filling machine, capsule powder removing machine)
4. A packaging production line for packaging machinery and equipment (counting machine, sealing machine, bottle unscrambler, capping machine, dryer, labeling machine)
Tablet press supporting equipment:
Mixer (dry powder V-type mixer, trough-type wet material mixer, three-dimensional mixer) Granulator (wet process rocking granulator, dry granulator, rotary granulator) Sugar Coating Machine, Coating Machine, Pill Making Machine, Pulverizer, Tablet Counting Machine, Electronic Counting Machine Decoction machine, dryer, oven, drying equipment, vacuum feeder, powder removal sieve equipment Tablet press with vacuum cleaner, slicer, etc. We can produce mold renderings and drawings according to customer requirements, Sincerely look forward to cooperating with you, we will serve you wholeheartedly.
