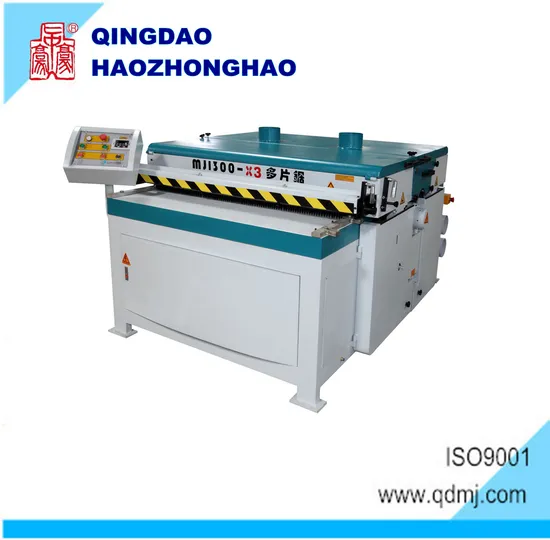

Woodworking Multiple Rip Saw Cutting
| US$11,500.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MJ1300-X3
Layout
Horizontal
Controlling Mode
CNC
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
ISO
Customized
Customized
Condition
New
Color
Customized
Transport Package
Plastic Bags
Specification
2030*1800*1230mm
Origin
Qingdao China
Production Capacity
5 Sets/Month
Product Description
| Model | MJ1300-X3 |
| Max Working width (mm) | 1300 |
| Working thickness(mm) | 5-25 |
| Min. Working Length (mm) | 650 |
| Spindle Speed (r/min) | 2600 |
| Saw Blade Diameter (mm) | 205 |
| Max. Number of Saw Blades (pcs) | 60 |
| Power of Spindle Motor (kw) | 18.5 |
| Power of Feeding Motor (kw) | 1.5 |
| Total Power of Installed Motor (kw) | 20 |
| Feeding Speed (m/min.) | 0-12 |
| Pair Number / Number of Feeding Roller | 6units/12 pieces |
| Voltage | 380V 50Hz 3Phase |
| Overall Dimensions (mm) | 2030*1800*1230 |
| Weight (kg) | 2200 |
Function
It can be used to grooving on solid wood, MDF, composite board and non wood filler, or cut the board into narrow strips.
Characteristics
The spindle of saw can lift and down, which is suitable for different kinds of wood material.
Welding machine frame has enough strength and rigidity to provide solid basis for power cutting and smooth feeding.
Longer feeding platform and reference guide can make sure of high process precision.
Feeding platform and outfeed platform has 6 units of active feeding rollers to make sure of smooth feeding power.
The upper press rollers make all the press rollers press the panel tightly and make sure of smooth feeding.
Large dust removing cover can remove the dust thoroughly and make sure of good working surroundings.
