High Voltage 200kVA Transformers for Global Resale Opportunities

Product Description

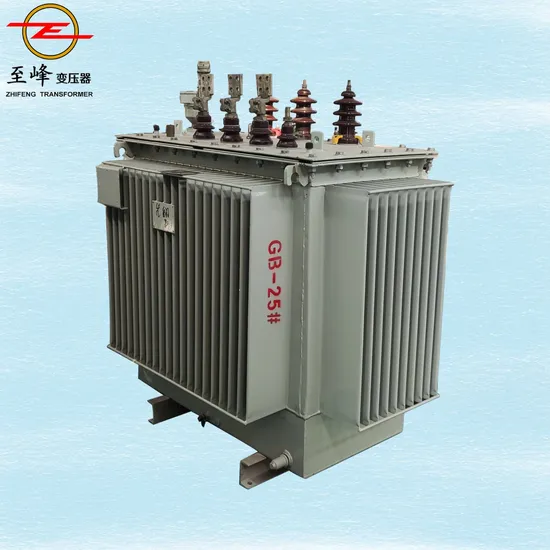

Product Name: 10kv/0.4kv 1600kVA All-Copper Sealed Oil Immersed Three-Phase Distribution Transformer
Category: Transformer
Keywords: Transformer, S11 Transformer, Oil-Immersed Distribution Transformer, Distribution Transformer, Step Up Transformer, Power Transmission Transformer, High Voltage Transformer, Power Transformer, 250kVA Power Transformer, Electric Transformer, Voltage Transformer, Toroidal Transformer, Inverter, Electrical Transformer, Current Transformer, Power Supply, Outdoor Transformer, Step Down Transformer
Description: The 10kv/0.4kv 1600kVA All-Copper Sealed Oil Immersed Three-Phase Distribution Transformer is a high-quality transformer designed for efficient power distribution. With its all-copper construction and sealed oil immersion, this transformer ensures reliable performance and durability. It is suitable for a wide range of applications, including power transmission, voltage transformation, and power supply. This transformer is designed to meet the highest industry standards and is ideal for outdoor use. Upgrade your power distribution system with the 10kv/0.4kv 1600kVA All-Copper Sealed Oil Immersed Three-Phase Distribution Transformer.
Shandong Zhifeng Transformer Co., Ltd.Introducing the Coil Core Fully Sealed Distribution Transformer-a revolutionary innovation poised to set new benchmarks in energy efficiency and performance.
Crafted with a precision-engineered core, this transformer offers a notable reduction in no-load loss and current, achieving an impressive 60% to 80% decrease in no-load current.Featuring high and low voltage coils continuously wound around the core pillar, it delivers tightly aligned windings and extraordinary concentricity.Our unique winding design substantially enhances anti-theft protection.Enjoy a quieter operational environment with a noise reduction of over 10 decibels.Experience a significant drop in temperature rise, ranging from 16-20K, boosting both safety and efficiency.An optimized iron core with a pure circular cross-section maximizes the use of silicon steel sheets, reducing no-load loss by 20% to 30%.Step into the future of energy with our cutting-edge Coil Core Fully Sealed Distribution Transformer!
Shandong Zhifeng Transformer Co., Ltd. is thrilled to introduce the S11-800KVA 10KV/0.4KV three-phase oil-immersed distribution transformer. With its solid triangular core and copper core construction, this transformer is ideal for a multitude of power and electronic applications.

Rated capacdity (kVA)	Voltage combinationand tap range			Vector group symbol	Non-load loss (W)	Load loss (W)	No-load current (%)	Short arauit mpedance (%)
	High pressure (kV)	High pressure tap range (%)	Low pressure (kV)
30	11 10.5 10 6.3 6	±5 ±2×2.5%	0.4 0.69	Yyn0 Dyn11	100	630/600	2.3	4
50					130	910/870	2.0	4
63					150	1090/1040	1.9	4
80					180	1310/1250	1.9	4
100					200	1580/1500	1.8	4
125					240	1890/1800	1.7	4
160					280	2310/2200	1.6	4
200					340	2730/2600	1.5	4
250					400	3200/3050	1.4	4
315					480	3830/3650	1.4	4
400					570	4520/4300	1.3	4
500					680	5410/5150	1.2	4
630					810	6200	1.1	4.5
800					960	7500	1.0	4.5
1000					1150	10300	1.0	4.5
1250					1360	12000	0.9	4.5
1600					1640	14500	0.8	4.5
2000					1960	19800	0.8	5
2500					2310	23000	0.7	5

Application Scenarios:
The S11 series 10-3150KVA/10KV distribution transformers from Shandong Zhifeng Transformer Co., Ltd. offer unparalleled energy-saving benefits. Featuring advanced core materials and an evenly distributed magnetic circuit, they drastically minimize no-load excitation current and loss, thereby enhancing power factor and quality. The innovative all-inclined three-joint core structure ensures dependable operation, compact size, lighter weight, low noise, excellent heat dissipation, reduced temperature rise, and superior efficiency. Perfectly suited for 10KV, 50Hz transmission and distribution systems, the S11 series is an excellent choice for residential areas, commercial streets, industrial enterprises, mining operations, and rural power and lighting needs.
Shandong Zhifeng Transformer Co., Ltd.Shandong Zhifeng Transformer Co., Ltd. presents a comprehensive lineup of products, featuring the S9, S11, S13, and S15 series of 10KV to 110KV oil-immersed power transformers. Our diverse portfolio also includes on-load voltage regulation power transformers, amorphous alloy transformers, SC(B)9(10), SG(B)10 type dry transformers, switch cabinets, combined transformers, box substations, anti-theft transformers, mining transformers, rectifier furnace transformers, and other specialized power transformers. Our versatile products cater to a wide range of sectors including power generation, nuclear power plants, transportation, mining, metallurgy, construction, petrochemicals, chemicals, electrified railways, urban light rails, communications, and urban and rural power grid construction and upgrades.
Shandong Zhifeng Transformer Co., Ltd. is renowned for its exceptional technical expertise, state-of-the-art production technology, premium-quality equipment, and exhaustive testing capabilities. Our products have garnered numerous accolades, including the prestigious ISO9000:2000 international quality certification, rigorous CTOC (National Transformer Quality Supervision and Inspection Center) inspection, China energy-saving product certification, and the esteemed CCC certification. Through years of dedicated operation, our products have demonstrated outstanding energy efficiency, eco-friendliness, and unwavering performance reliability.
We operate with core values rooted in honesty, trustworthiness, innovation, and meticulous refinement. Embracing a people-centric approach, we place utmost importance on customer satisfaction. Our mission is to foster collaborative partnerships, deliver exceptional service, cultivate enduring relationships, and make a positive contribution to the community.
Frequently Asked QuestionsQ: Are you a manufacturer, factory, or trading company?A: Indeed, Shandong Zhifeng Transformer Co., Ltd. possesses over 15 years of unmatched expertise in the development, production, and operation of premier transformers.
Q: What is your warranty?A: We are proud to offer an extensive 12-month warranty on all our superior-quality products.
Q: What is the production time?A: Our production timeline generally spans from 30 to 45 days, meticulously customized to fulfill your specific order requirements.
Q: What are your payment terms?A: We offer adaptable payment terms, including T/T, L/C, or personalized negotiation to cater to your convenience.
Q: How does your factory conduct quality control?A: We enforce stringent quality control measures, executing 100% QC inspections throughout the entire manufacturing process, ensuring over 10 meticulous inspections from raw materials to the finished product.
Q: Do you have products in stock?A: Generally, we do not maintain stock; all our products are custom-manufactured to meet specific order quantities.
Q: What is needed for a custom transformer order?A: Ideally, technical drawings and specifications are preferred. Alternatively, detailed technical specifications as outlined under 'Quote and Order Required Information' are also acceptable.
Q: Can I have a catalogue and price list for a trial order?A: All our outstanding products are made in China and are prominently featured on our official website. For additional details, please contact us directly.
