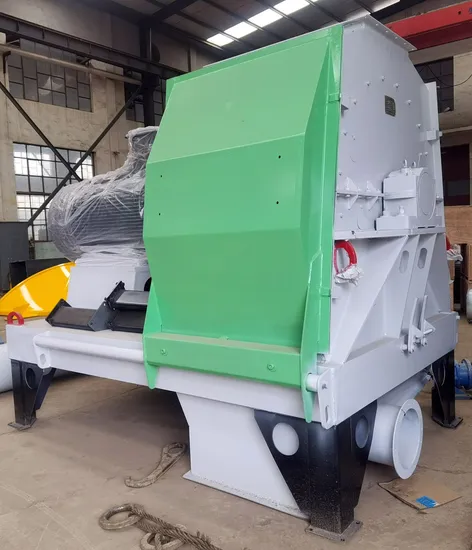

Multifunctional Sawdust Wood Powder Making Machine Hammer Mill

Product Description

Product DescriptionSawdust Wood Powder Making Machine is a kind of advanced crushing machine for getting fine material. This product series has advantages of many grinders. It comes into being based on the theories of shock, shear, collision, and grinding.
It crush small logs, branches, roots, waste rubber, PVC foam board, straw and weed, coconut shell, palm shell, wood chips etc.for biomass fuel factory, biomass power plant, animal feed, chemical plant. Product Structure
Product Features 1) Advanced processing equipment, 1260mm gantry milling, process rotor integrally, guaranteed balance and stability.
2) The shell adopts welded-steel plate construction, the main machine is embedded for seal, completely avoids dust spillover and maintains a clean work environment.
3) The motor supply power to the machine by drum coupling directly. Built-in rotor, grinding at all angle, uniform output size.
4) Low rotation speed and high line speed, more stable performance and higher productivity.
5) Exclusive design of pull-out type wear-resistant plate, easy maintenance.
1) Exclusive design of multi-ladder hammer, high productivity.
2) Forged hammers are symmetric homogeneous permutation, small vibration without blind angle, large crushing friction area, wearing resisting material, big wrapping angle.
3) Special fastener for esay assemble and disassemble of hammer, Wearing resisting material 30Mn alloy, enhanced for better wear-resistance and longer service span, special treatment for grinding edge, more durable.All rotor will go through strict Dynamic balance test to guarantee running stability after finish manufacturing and assembling.
2 separate arc side door ensures easy observation and replacement of the screen, hammer and rotor, without disturbing wind and flying dust.
The draught fan's efficiency is maximized by faster pneumatic conveying and minimum wind resistance.
The output sawdust is conveyed by screw conveyor with high efficiency and low maintenance cost. Product Parameters

Machine name	Sawdust Wood Powder Making Machine
Model	HXSM530	HXSM680	HXSM1404-100	HXSM1404-110	HXSM1404-110A	HXSM1404-130
Input size (mm)	900 x 630	1100 x 630	580 x 1000	580 x 1100	580 x 1100	580 x 130
Speed of main shaft (RPM)	1485	1485	1485	1485	1485	1485
Main power (kw-4 )	90	132	160-200	250	280	315
Rotor diameter (mm)	830	980	1400	1400	1400	1400
Hammer Qty (pieces)	72	80	72	80	80	96
Cyclone model	HXS1000	HXS1000	HXS13A	HXS13A(1350)	HXS13A	HXS15A(1500)
Diameter of cyclone (mm)	1000	1000	1350	1350	1350	1500
Airlock of cyclone (kw)	2.2	3	4	4	4	5.5
Fan power (kw)	5.5	5.5	30	30	30	30
Screen area (m²)	1.72	2.51	3.4	3.74	3.74	4.38m²
Discharege screw conveyor	D: 300 mm	D: 400 mm	D: 400 mm	D: 400 mm	D: 400 mm	D: 500mm
	L: 2.8 m	L: 3 m	L: 5 m	L: 5 m	L: 5 m	L: 5m
	Motor:4 kw	Motor: 4 kw	Motor: 5.5 kw	Motor: 5.5 kw	Motor: 5.5 kw	Motor: 7.5kw
Bag Qty (pcs)	20	20	50	50	50	50
Screw conveyor of bag filter	N/A	N/A	D: 270mm, L: 5.2m, Motor:4kw	D: 270mm, L: 5.2m, Motor:4kw	D: 270mm, L: 5.2m, Motor:4kw	D: 270mm, L: 5.2m, Motor:4kw
Air lock of bag filter (kw)			1.5	1.5	1.5	1.5
Capacity (T/H)	2-3	3-5	7-9	8-10	10-12	13-16 (10-14)
Screen mesh size (mm)	D: 12	D: 12	D: 12	D: 12	D: 12	D: 12
Main machine dimen (m)	2.5 x 1.4 x 2.2	2.9 x 1.6 x 2.5	3 x 2 x 2.5	3.25 x 2 x 2.56	3.25 x 2 x 2.56	3.5 x 2 x 2.5
Bag filter dimension (m)	2.6 x 1.5 x 4	2.6 x 1.5 x 4	5.6 x 2.1 x 2.3	5.6 x 2.1 x 2.3	5.6 x 2.1 x 2.3	5.6 x 2.1 x 2.3
Cyclone dimension (m)	1.1 x 1.1 x 3	1.1 x 1.1 x 3	1.9 x 1.7 x 3.2	1.9 x 1.7 x 3.2	1.9 x 1.7 x 3.2	2.2 x 1.72 x 3.6
