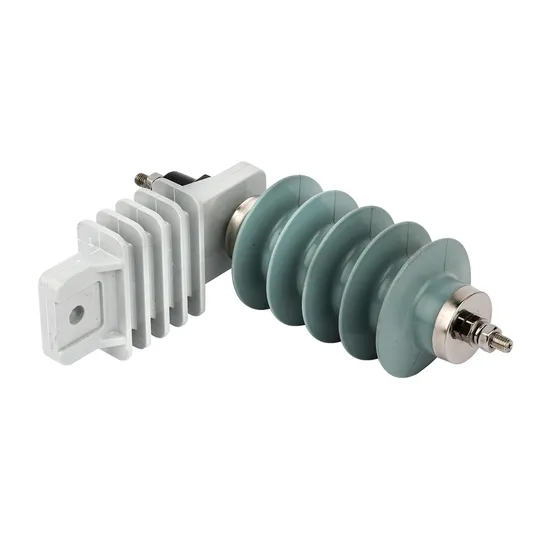

Polymeric Lightning Surge Metal-Oxide Arrester
Basic Info.
Model NO.
YH5W-9
Installation
Parallel Arrester
Application
AC/DC System
Size
Meidum
Operation Voltage
High Voltage
Shape
Gyro Type
Material
ZnO
Certification
ISO9001, Kema
Brand
Zhon
Transport Package
Carton or Plywood Case Packing
Specification
9KV
Trademark
ZHON / OEM
Origin
China
HS Code
8535400000
Production Capacity
10, 000 PCS/Month
Packaging & Delivery
Package Size
28.00cm * 15.00cm * 30.00cm
Package Gross Weight
2.000kg
Product Description
Standards: IEC 60099-4The ambient air themperatures is no higher than +40° C, no lower than-40° C.
The altitude above sea level dose not exceed 2000m.
AC system frequency is 50Hz or 60Hz.
AC voltage brought to bear on arrester for a long time dose not exceed arrester's continuous operating voltage.
Maximum wind speed dose not exceed 35m/s.
The earthquake intensity dose not exceed 7 degrees.
| Type | Rated Voltage | Maximun Continuous Operating Voltage | Current impulse residual voltage | 2ms Rectangular current impulse withstand | 4/10µ s High current impulse withstand | ||
| 1/4µ s Lightning Current impulse | 8/20µ s Lightning current impulse | 30/60µ s Switching current impulse | |||||
| kV(rms) | kV(rms) | kV(crest) | kV(crest) | kV(crest) | A | kA(crest) | |
| YH5W-9 | 9 | 7.65 | 33.7 | 27 | 23.8 | 150 | 65 |
