Automatic Pet Jars Making Machine Isbm, Plastic Blowing Machine

Product Description

JASU Factory One Step INJECTION STRETCH BLOW
MOLDING MACHINE ISB800-3
JASU one step blow machines include
Injection blow molding machine and injection stretch blow molding machine.
The machines are three stations, injection preform, blow/stretch blow and product release. The raw material comes from the hopper to the injection
screw to inject preform; the plate rotates preforms to blow/stretch blow station with themselves heat, without any reheating for blowing,
Then the product will rotate to release station and drop down, it is fully automatically cycle rotation working mode.
JASU One Step Injection Stretch Blow Molding Machine advantages are as follows:
1. The wheel rotation is driven by electrical servo motor, not hydraulic.
2. Full automatic controlling system, easy operating
3. The temperature of material barrel and hot runner is controlled accurately by PIT.
4. More cost is saved than traditional machine.
5. Compact structure; less space needed
6. Injection: Hot runner and temperature control device are standard configuration. Only change mold for making a new product; Stretch Blow:
Hydraulic mold clamping, core insert, stretch blow and bottom molding are standard configuration;Product Release:Equipped with a standard ejector.

ISB800-3 Main Specification		Main Devices Brand
Material	PC,PP,PET,TRITAN,PMMA,PS	Servo Motor and Oil Pump	Phase (Italy) and Eckerle (Germany)
Screw Diameter	40mm	Sealing Parts	Yuken(Japan), TAIWAN
Screw L/D Ratio	20.5:1	Hydraulic Valve	Yuken(Japan), TAIWAN
Screw Speed	0-190	Air Valve	AirTAC
Theoretical Injection cavity	238cm3	Air Cylinder	AirTAC
Injection Pressure	174Mp	Controller (PC)	JASU, TAIWAN
Max.hydraulic Pressure	140kg/cm	Photosensor	Carlo,China
The actual injection quantity	225g(ps),8Oz	Safety delay	Schneider (ShangHai
Screw Stroke	190mm	Servo Motor for Turntable	TECO, Taiwan
Blow Clamping Force	80kn	Gear Reducer	SESAME, Taiwan
Clamp Tonnage	400kn	Low-voltage components	Joint Venture
Wheel Diameter	800mm	Hydraulic hose	China
Max.Height Of Bottle	15-150mm	F.R.L	China
Open Vertical Mode Trip	430mm	Hydraulic joint	China
Max.Pump Pressure	16Mpa	Blowing valve	AirTAC(TaiWan)
Servo Motor	22kw	Low-pressure cylinder	AirTAC(TaiWan)
Electric power	8.9kw	low-pressure valve	AirTAC(TaiWan)
Tank volume	400L	PLC	JASU(TaiWan
Dimension of Machine	3.8*1.45*3.0m	Air switch	Schneider(Shanghai)
Machine Weight	5T	Display screen	JASU(T

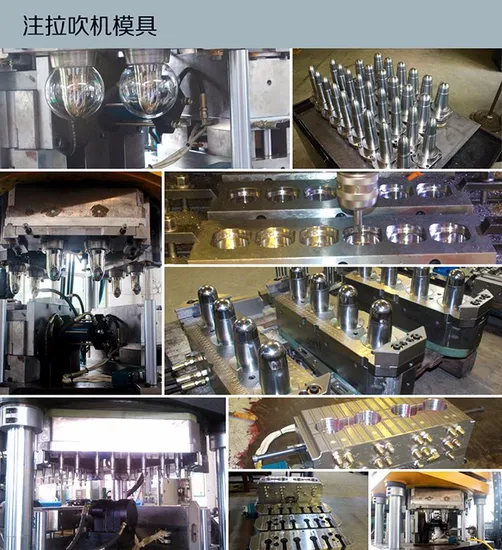

Jasu injection stretch blowing mould
For PC, PS,PMMA lamp cover, LED light lampshade,Christmas flash light, garden and street light.For PET high transparent,much thinner wall, cosmetic bottle 10ml to 500ml, PET wide neck jar, PET pharmaceutical bottle For PP high transparent, baby feeding bottle, sport bottleFor PCTG, Tritan drinking water bottle, sport bottle.Mould and tooling, we have mould workshop ourselves, advanced CNC machine and smart design engineers,we can treat different material and
size products from different customers over the world.Auxiliary machine,we will equip you with the necessary quality auxiliary machines to ensure the production plan running well,we can supply you one-stop service.
JASU group
Gauangzhou Jasu Precision Machinery Co.Ltd is a sabusidiary of JASU International Machinery Group locates in Guangzhou China, which is top 3 supplier of CNC machine tools in South China. JASU owns R&D center and factories in Guangzhou and Suzhou. JASU has been dedicated to manufacturing machine for 20 years. Absorbing the design and manufacture of Taiwan and Germany, JASU create a series of highly distinctive, automatic and cost-effective one step Injection (Stretch) Blow Molding Machine. JASU has got high reputation and trust among customers by means of modern management method, perfect quality, novel design and reasonable price.
FAQ:
Q1: All of your products are made by your self or compacted via purchasing the others?
A1: We have independent technical team who focus on making machines; all the products are made by our technical team.
Q2: What is the ability of your factory?
A2: About blow molding machine, we could produce 30 sets machine per month
Q3: Do you have any technical supports about your products?
A3: We have had long term collaboration with German, and we have a lot of cooperation with a lot of advanced manufacture company on the world.
Q4: Do you have any other service about your products?
A4: We have a lot of experience on making complete "Turn-Key" projects and specifications for our clients. Also we have a fixed service system
Q5: How do you make the quotation for clients?
A5: The price depends on quality and performance but the clients should be satisfied us at first
