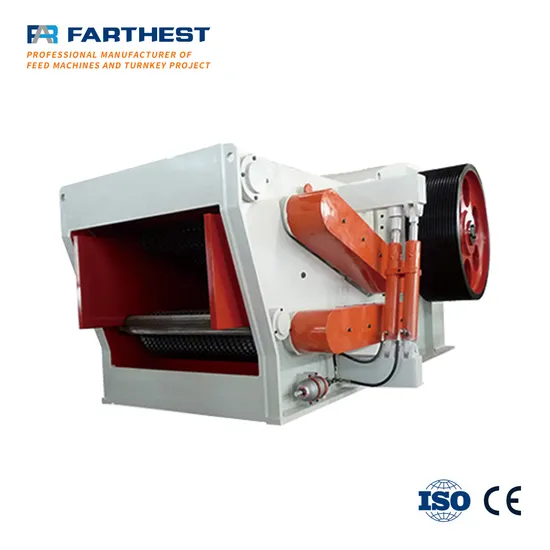

Farthest 380V Drum Chipping Machine for Wood Log Lath

Product Description

Product Description

Features
1. The serial drum chippers of our company are a kind of special equipment that produces technological wood chips. Widely used in the production of medium-density fiberboard., ordinary shaving board and in the papermaking industry etc., it is used as the main machine of material-preparing process of wood chips, could be used as independent wood chip production equipment as well.
2. The raw materials for the serial drum chippers mainly include: log, small-diameter wood, tree-felling remainder (branch etc.), wood processing remainder (lath, slab, log core, abolish single-board.).
3. The serial drum chippers are of compact structure, ease of operation, high capacity, wide raw materials adaptability, high quality, safe and reliable, easy to maintain, it is the relatively advanced slicer at present both at home and abroad.
4. The serial drum chippers could meet the production capacity between 3 and 130 cubic meters of wood chips per hour. Users could select the suitable type of machine according to requirements. Product Parameters

Main Technical Parameters

Model Parameters	BX216	BX218	BX218D	BX2110	BX2113/11
Rotor Diameter(mm)	650	800	800	1000	1300
Number Of Flying Knives(pc)	2	2	2	2×2	3×2
Feed Opening(mm)	180×500	225×680	240×750	330×1050	400×1050
Knife Rotor Speed(rpm)	590	650	650	550	442
Feed Speed(m/min)	37.2	37	38	38	43
Stock Processed Max Diameter(mm)	120	160	160	210	230
Chip Length(mm)	30	30	20-30	30	30
Capacity(m3/h)	10	15-20	38	75	108
Main Drive Motor Power(kw)	55	110	132	220	315
Feed Roller Motor Power(kw)	2×3	4×2	4×2	7.5×2	11×2
Pump Motor Power(kw)	---	---	0.55	2.2	3
Machine Net Weight(kg)	4070	7000	7500	12500	18000

Related Products
FAQ
1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?
A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.

3. Q: How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer's side.). After this period we will definitely
still support you when needed. You will be welcome to contact us with any problem might experience.

4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
Packaging & Shipping
Exported Equipment
AR products have been exported to South Korea, Iraq, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.
Exhibition
Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23rd- 25th Sep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18th-20th May, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.
Company Profile
CHANGZHOU FARTHEST MACHINERY CO., LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. FAR has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to FAR products.
