Product Description

Products Description EMC testing and radiation anti-interference testing both require the EUT to be exposed to a specific distance from the horn aperture surface (such as 1000 millimeters) and obtain a pulse peak field strength at a certain level (such as 600V/M). Due to near-field gain compression, most speakers will experience a decrease in field strength at the required distance. The HD-EMCHA EMC measurement horn antenna series is an antenna specifically designed for EMC measurement. During the design process, optimization was carried out for this issue. In addition to adopting the principle of low aperture field difference design, special amplitude and phase control techniques were also used on the E-face of the horn to improve the distribution of aperture field on the E-face. Can be used for EMC measurement and establishing standard microwave field sources for various levels of metrology departments. The antenna is formed by copper plate silver welding or aluminum plate argon arc welding or aluminum brazing, with high structural strength, stable and reliable performance. specifica

Model No*	Frequency range(GHz)	waveguide		1 meter away(V/M)	Flange
		national standard	EIA
EF-14EMCHA600N	1.2-1.4	BJ14	WR650	600@300W	FDP
EF-32EMCHA600N	2.7-3.2	BJ32	WR284	600@250W	FDP
EF-40EMCHA430N	3.22-4.90	BJ40	WR229	430@200W	FDP
EF-48EMCHA430N	3.94-5.99	BJ48	WR187	430@200W	FDP
EF-58EMCHA430N	4.64-7.05	BJ58	WR159	430@200W	FDP
EF-70EMCHA430N	5.38-8.17	BJ70	WR137	430@200W	FDP
EF-84EMCHA430N	6.57-9.99	BJ84	WR112	430@200W	FBP
EF-100EMCHA650N	8.20-12.40	BJ100	WR90	650@150W	FBP
EF-120EMCHA650N	9.84-15.0	BJ120	WR75	650@150W	FBP
EF-140EMCHA650N	11.9-18.0	BJ140	WR62	650@150W	FBP
EF-180EMCHA650N	14.5-22.0	BJ180	WR51	650@150W	FBP
EF-220EMCHA550N	17.6-26.7	BJ220	WR42	550@100W	FBP
EF-260EMCHA550N	21.7-33.0	BJ260	WR34	550@100W	FBP
EF-320EMCHA550N	26.5-40.0	BJ320	WR28	550@100W	FBP

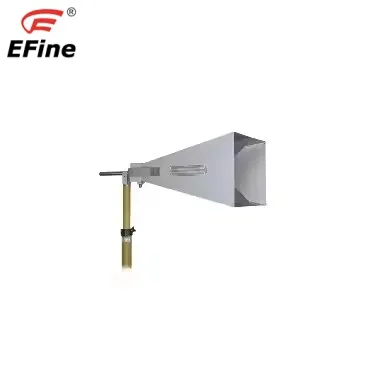

Product picture
Product Description Standard Gain Horn Antenna A horn antenna can be viewed as a gradually opening waveguide. The function of the horn is to generate a uniform phase wavefront over the larger aperture of the waveguide, resulting in higher directivity. A standard gain horn antenna is a horn antenna whose gain is scaled to the frequency characteristics. The bandwidth of the horn antenna is determined by the operating frequency range of the main mode in the waveguide connected to it. The operating frequency of the rectangular waveguide is determined by the operating frequency range of the main mode TE10 mode, and the gain is mainly from 10 dB to 25 dB. Applications of Standard Gain Horn Antenna 1.Automotive Antenna Test Solutions Cars are becoming 'antenna farms' with as many as 10 to 80 antennas mounted on them with the addition of new consumer-oriented services. Military vehicles and industrial fleet vehicles also continually add additional antennas for specialized communications, movement coordination and data gathering. While conventional antenna testing techniques are not effective due to new spatial coverage and frequency requirements, NSI-MI has developed solutions for automotive antenna testing applications. Our systems allow for the characterization of antennas for cell phones, GPS, satellite radio, collision avoidance, automated tolling, traffic monitoring, personal area networking, AM/FM radio, and more. NSI-MI has developed spherical near-field measurement systems for
vehicular antenna testing applications in both indoor and outdoor environments.
2.General Antenna Testing
Our test and measurement facilities coupled with our highly experienced staff are available to support your testing requirements. Whether you need to test in the near-field, far-field or a compact range, NSI-MI can provide accurate and fast results.
3.Radar Cross Section
We provide state-of-the-art radar cross section measurement systems suitable for measuring small-scale test articles and/or full-scale vehicles depending on customer requirements.
4.Radome Testing
The military and commercial aircraft carry a vast array of antennas for specialized and vital functions. Communications, navigation, weather and fire control antennas must perform as specified to meet safety and mission requirements. Radomes must conceal and protect antennas without interfering with or degrading transmit/receive capabilities.
5.Satellite Antenna Testing
RF testing of flight hardware poses challenges that are unique to the space industry and antennas specifically, are often delicate and gravitationally sensitive. Minimizing or even avoiding motion of these antennas during testing is highly desirable for two reasons: Firstly, it minimizes risk to the antennas. Secondly, the standard gain horn antenna can be deployed with respect to a fixed gravity vector.
6.Wireles
Wireless networks rely on antennas and our products allow for the reliable characterization of these antennas. We offer test systems that are suitable for evaluation of electrically small handset or other UE antennas, as well as electrically large base station antennas. Packaging & Shipping
