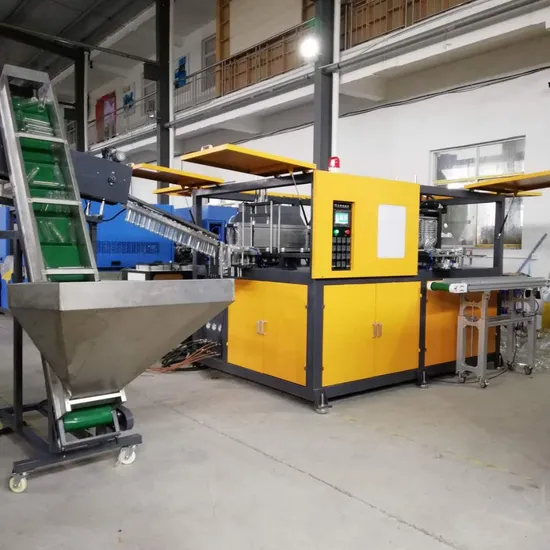

Pet Preform Blow Moulding Machine for 5L Edible Oil Bottles

Product Description

Product Description
Pet Preform Blow Moulding Machine for 5L Edible Oil Bottles
Faygo's Fully automatic Blow Molding Machine mainly used to making PET& PETG plastic bottles/cups/buckets which for filling pure water, mineral water, milk, juice,beverage liquid,oil,etc. It is developed totally independently, has our own intellectual property rights, and has obtained more than 13 national patents.
FG series are the most stable two-step high speed automatic liner blow moulding machine. FG4 serie has four cavities and the maximum capacity of the products is 2L.The capacity can be 6800-8000BPH, 8 cavities can reach 16000BPH. It can blow bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET etc.
YD series are the standard speed automatic flip blow molding machine,the maximum capacity of the blowing bottle is 20L.It is a very cost-effective model.
The Features of this Faygo Bottle Blow molding Machine
1).High Automatization
2).High Intelligence:The machine can be controlled through touch screen and running status is shown on it.
3).High Quanlity:Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4).High Speed:8000BPH(4-cavity)
5).No Contamination:Closed production zone, good self-lubrication system avoid contamination.
6).Low Cost:Low consumption of electricity, air and water.
7).High Transparency:Easy maintenance, absolute safely, visual inspection, low noise.
Product Parameters

Model			FG4	FG6	FG8	Remark
Mold number(piece)			4	6	8
Capacity(BPH)			6500~8000	9000~10000	13000~16000
Bottle specification	Max volume(mL)		2000	2000	750
	Max height(mm)		328	328	328
	Round bottle max diameter(mm)		105	105	105
	Square bottle max diagonal(mm)		115	115	115
Preform specification	Suitable inner bottle neck(mm)		20--25	20--25	20--25
	Max preform length(mm)		150	150	150
Electricity	Total installation power(kW)		51	51	97
	Heating oven real power(kW)		25	30	45
	Voltage/frequency(V/Hz)		380(50Hz)	380(50Hz)	380(50Hz)
Compressed air	Pressure(bar)		30	30	30
Cooling water	Mold water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6--13	6--13	6--13
	Oven water	Pressure(bar)	4-6	4-6	4-6	Water chiller (5HP)
		Temperature regulation range(°C)	6-13	6-13	6-13
Machine specification	Machine dimension(m)(L*W*H)		3.3X1X2.3	4.3X1X2.3	4.8X1X2.3
	Machine weight(Kg)		3200	3800	4500

Product Details
Servo driving and cam linking blowing section:
The unique cam linking system integrates movement of mold-opening, mold-locking and bottom mold-elevating in one movement.
equipped with high speed servo driving system which greatly shorten the cycle of blowing and increase the capacity.
Small performs distance heating system:
Heater distance in the heating oven is reduced to 38mm, compared with the conventional heating oven it saves more than 30% electricity consumption.
Equipped with the air cycling system and redundant heat discharge system, it ensures the constant temperature of the heating zone.
Efficient and soft perform inlet system:
By rotary and soft preform inlet system, the speed of prefom feeding is ensured meanwhile, the preform neck is well protecte
Modularized design conception:
Adopting modularized design concept, to make it convenient and cost-saving for the maintenance and changing spare parts.
FG Series Optional items:
Exploded bottles ejection unit:
During the blowing process, if the bottle burst, bad bottles can be automatically removed.
This prevents the bad bottles from entering the filling machine.
HP air recovery system:
After the bottle blowing, high-pressure air can be recycled and used again for the pre-blowing and machine physical movement.

Oven and preform temperature detection system:
Detection system detects temperature of oven and the temperature of performs.
When the preform temperature does not reach the set blowing temperature, blowing workstation will alarm, not blown.
Equipped with remote monitoring system:
Engineers in China headquarter can check the data collected and sent by the PLC anytime with the mobile ,feedback will informed to the client's site if something abnormal ,give the machine 24 hour'baby care in the cradle.
If you have any question, please feel free to contact us

Related Products
below is the Semi auto blowing machine, it's especially used to produce from 2 Litre to 20 Litres bottles,small size and more easy to operate.
Company Profile
Jiangsu Faygo Union Machinery is a professional manufacturer of plastic machines.
It occupied an area of 18000 square meters. With years of development, its products covers plastic extrusion lines,
plastic blowing machine, plastic recycling machine, air compressor etc.
Stick to the company idea is making good machine, being good person,
Faygo Plast alwasy provide customers with high quality machines.
Warmly welcome to visit our factory (next to Shanghai)!
FAYGO UNION GROUP has 3 branch factories.
1.FAYGOBLOW which design and make blow molding machine for PET, PE etc. FAYGOBLOW has 5 patents of invention, and 8 patents utility models. FAYGO PET blow molding machine is one of fastest and most energy-efficient design in the world.
2.Second factory is FAYGOPLAST, which make plastic extrusion machinery, including plastic pipe extruding line, plastic profile extruding line. Especially FAYGOPLAST can supply high speed up to 40 m/min PE,PPR pipe line.
3.FAYGO RECYCLING, which research new technology in plastic bottle ,film recycling processing and pelletizing. Now FAYGO RECYCLING can make up to 4000kg/hr. PET bottle washing line, and 2000kg/hr plastic film washing line.
Now FAYGO UNION GROUP has more than 500 customers from different countries, including UK, Spain, Germany, Norway, Switzerland, Italy, Turkey Russia etc. from Europe ,and America, Canada, Mexico, Brazil, Venezuela, Chilly etc from America, and Saudi Arabia, Iran, Syria, India, Thailand, Indonesia etc. from Asia, and many customers from Africa.
Our factory is located in Zhangjiagang city, covers an area of 26,650 square meters. It only takes around two hours driving from SHANGHAI international airport. Welcome to visit our factory, and hope to cooperate with you in the near future.
FAQ
Q: Your company is a transactional company or an industrial manufacture factory?
A: We are an industrial manufacture factory which locates in Zhangjiagang city.
Q: All of your products are made by your self or compacted via purchasing the others?
A: We have independent technical team who focus on making machines, all the products are made by our technical team.
Q: What is the ability of your factory?
A: About 100 lines per month.
Q: Do you have any other services about your products?
A: We have a lot of experience on making projects and specifications for our clients, also we have a fixed service system.
Q: How do you make the quotation for clients?
A: The price depends on quality and performance but the clients should be satisfied first.
