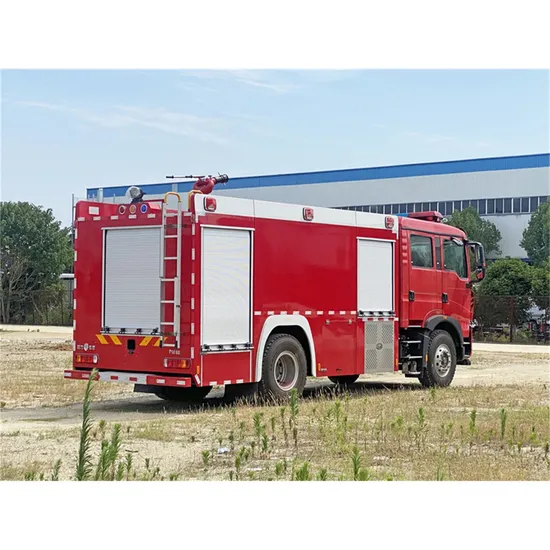

Sinotruk HOWO 380HP 8cbm 4X2 Fighting Truck Fire Rescue Truck

Product Description

SINOTRUK HOWO 380HP 8Cbm 4X2 Water Foam Fire Fighter Truck

Total quality	2213250 (Kg)	Volume of tank	12CBM
Load rating	12000 (kg)	Overall dimension mm	10570X2500X3780
Curb weight	10000(kg)	Number of bridge	4+6
Approach Angle/departure Angle	17/11 (°)	Forward overhang	1430/2440
Number of shaft	3	wheelbase (mm)	4350+1500
Axle weight (Kg)	6250/13000	Top speed	95(Km/h)
[Chassis technical parameters]
Fuel type	diesel	Tire size	12.00R20
Before wheel track	1980,2035 (mm)	After wheel track	1850 (mm)
Emission standards	Euro III
Engine type	Engine manufacturer	Displacement(ml)	Power(Kw)
MC07.28-50	China heavy duty truck group co. LTD	6870	295
Bridge instruction	Full metal enclosed cab with flat head, panoramic curved windshield. New front face mask, front bumper, front assembly lamps, car doors and Windows, front face mask.
tanks	Q235 quality carbon steel (5mm) material, welded structure, with vertical and horizontal anti-swing plate built in, has been treated with high-tech anti-corrosion. Choose stainless steel material.
The pump room	Central or rear pump, pump room on the left and right side, equipment box on the left side of the new easy to pull high-strength aluminum alloy shutter door.
Equipment boxes	With the introduction of European technology to produce aluminum alloy profiles of hidden tower technology manufacturing, the whole socket structure.
Volume of tank	8.0 m3; Tank size (length x width x height):2390 x 2400 x 1460(mm);
Gun range	Water 70 m or more
Fire pump model	Cb20.10/30.60 medium and low pressure vehicle fire pump
Rated flow/pressure	60L/s @1.0MPa 30L/s @2.0MPa

1. How to ship?
1). FOB, CIF terms, we will effect shipment and furnish the master bill of lading issued by shipping line.
2). FOB items, buyer should nominate shipping line or shipping agency in China.
3). Shipped by train, we will discuss with buyer to get agreement on details.
2. How about the quality?
The products have passed the ISO, CCC, SGS, BV, and CONTECNA qualification certification. All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
3. Can you offer customized service?
Yes, we can produce according to your samples or technical datas. We can build the molds and fixtures.
4. How about the delivery?
25-45 working days after payment is received. According to different trucks models
5. Which payment terms is acceptable?
30% advance payment after signed the contract, 70% balance be paid before delivery. Can accept T/T and L/C.
