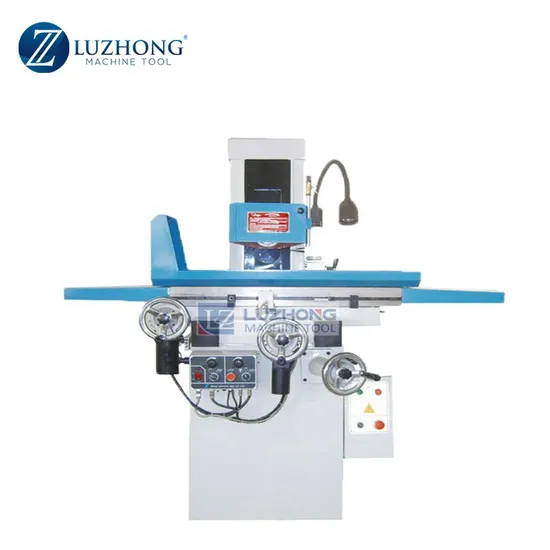

Good quality High Precision MD618A Electric surface Grinder Machine for sale

Product Description

Good quality High Precision MD618A Electric surface Grinder Machine for sale
Product Description
The main performance characteristics:
1. The machine has reasonable structure, good rigidity, beautiful appearance, convenient operation.
2. The transverse motion of the working table can be used to realize the mechanical transmission and the manual transmission.
3. The longitudinal movement of the working table can achieve mechanical drive and manual drive.
4. Can grinding a variety of flat and complex shape, suitable for grinding without motorized feed, according to the user needs to be equipped with permanent magnetic sucker or electromagnetic sucker.
Application:
Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry.
The machine tool can be made of grinding steel, iron, ceramics and non-ferrous metal parts. Product Parameters
Product main technical parameters:

Specification		Unit	618A	M818A
Max.width to be ground		mm	165	220
Max.length to be ground		mm	470
Max.height to be ground		mm	350
Table size		mm	155X460	210X450
() Permanent magnetic chuck size(optional)		mm	150X400	200X400
Max.longitudinal travel		mm	500
Max.cross travel		mm	185	240
Max distance from spindle center to table surface		mm	450
Feed of certical handwheel	Per rev	mm	1
	Per div	mm	0.005
(xx) Grinding wheel size(OD*W*ID)		mm	200X13X31.75
Spindle speed		r/min	3450 (60HZ) x 2850 (50HZ)
Power of spindle head		kW	1.5
() Max.load capacity(include permanent magnetic chuck)		kg	97	128
Machine weight		kg	790	920
(x x )Machine appearance size(L*W*H)		mm	1330X1090X1675	1330X1150X1675
( xx)Package dimension(L*W*H)		mm	1340X1120X1930	1400X1120X1985

Detailed Photos
Company Information
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
