Railway Roll Forming Machine Making Ss 301 304 Material Roofing Panel Roll Forming Machine

Product Description

Product Description
With public transportation facilities assuming greater significance by the day, the requirement of the Railways for railway coaches is also growing exponentially. And, being the mainstay of large-scale goods transportation, so is the need for railway wagons. Saibo Science & Technology provide profiles for railway wagons and coaches machine/fabrication of side walls and roofing assembles for LHB coaches/encoder frame components for coaches and wagons and so on.

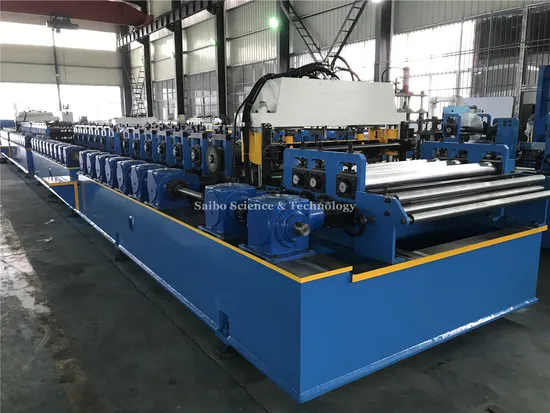

Saibo Science & Technology Railway roll forming machine adopts cassette design, according to customer request, one machine has three cassette units, can produce about 22 kinds of profiles. The rolling material is SS 301, 304, and the thickness range is from 1.25mm to 1.7mm. The forming part is about 7 stations for a quick change, and the replace the cassette units about 1 hour.
1. Profile drawing:

No	Specification of the material
1	Suitable Material	SS 304,301
2	Width of the raw material	According to final profile
3	Thickness	1.25-1.7mm

2. Layout of machine
Product Parameters
3. Specification of Components

No		Technical Specification & Remark
1	Roll forming pedestal	This frame include: feeding, leveler, pre-cutting basic frame, motor drive, gear box system, cutting device Feeding is adjustable, have two guide rollers in two side, feeding with the roller Leveler shaft 110mm, 40Cr material, 7 rollers for leveler and two station for feeding. Drive power by main forming section. Drive by gear box. Adjust by screw, manual. Basic frame: adopt steel plate welding structure Roll former has leveling bolts in the base
2	Main Roll Forming Machine	In feeding stations, the side, down and up need have rollers roll station: base on final design, about 7 stations as one unit Roll thickness: 1.25-1.7mm,max. Not more than 2mm Material: stainless steel, 301 and 304 as mentioned. Roller material: Gcr15, 58-62,HRC hardness and chrome plated surface Roller stations: cassette 1: 35 stations cassette 2: 28 stations cassette 3: 26 stations 7.Shaft diameter: cassette 1: ¢130mm material: 40Cr with thermal refining cassette 2: ¢130mm material: 40Cr with thermal refining cassette 3: ¢130mm 40Cr with thermal refining 8.Motor power: 45kw X2, total 90kw. 9.Transmission: Gear box driving system for each station, include feeding and leveler 10.After cutting the sheet will come to guide roller in two stations then go to roll forming, guide roller table about 5 meters 11.Post cutting: one set of cutting system, 14 sets of cutting blade to change the different profiles. 12.Adopt non-stop track cutting system, when cutting the main machine is not stop. 13.Servo motor: 4.4kw Yaskawa 14Cutter material: Cr12mov HRC58-62 degree
3	Machine structure	1. Main frame by H beam welding 2.Machine structure: wire electrode cutting
4	Auto stacker	Run out motor power: 3KW Max speed: 20m/min Max stacking length : 11.5m.max can take 14000mm sheet Surface of the table with rubber The side move out width: 2.5m Max stacking thickness: 300mm Max stacking weight: about 4 tons Quantity: 1

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html

Warranty
Warranty
warranty: 1 year warranty from date of shipment
guarantee:
1: guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. repairs will be made free of charge.
2: repairs will not be performed free of change even during the guarantee period in the follow circumstances
- damage occurs due to a natural disaster
- malfunction occurs due to user error
- malfunction occurs due to modifications
- malfunction occurs due to further movement or shipment after installation
3: air ticket, transportation cost, hotel, meals and 80$ per day shall be for purchaser's account if manufacturer's engineer has to be send to purchaser's factory to maintain the machine during the guarantee period.
After Sales Service
Servies
Saibo's Online Service.
Saibo Machinery Services Online gives you fast and easy online access to your Installed Base to order your SAIBO original spare parts and explore the Options & Upgrades relevant for your line.
It is a user-friendly interface, available 24/7, in 9 languages, and is your one-stop online shopping. Designed to make your life easier in your day to day business, it will help you to improve your line and maintain its performance.
SAIBO Services Online helps you:
1 - Machine running video
2 - Watch our factory online
3 - Supply a running line in your country, you can see the machine running directly.
Packaging & Shipping
7.Packing & Delivery

Packing	1.Machine is nude loaded in the container .
	2.The electric controlling box is packed by protect film .
	3. All the spare parts are put in the wooden box .
Delivery	1. Sea shipping .
	2. Air shipping for sampling .
	3. Train shipping for landlocked countries serviced by CRExpress Europeblock train ferry .

View more products,click here...
https://saiborollforming.en.made-in-china.com/product-list-1.html Company Profile
About Saibo
40 years history in Metal roll forming machine industry30 years experienced engineersFocus on machine quality and automatic with reasonable priceExperienced technician can be sent to install machines abroad200+ sets of machines exported each year
24 hours on line service
Zhangjiagang City Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of different kind of high speed roll forming machine, Main use of our roll forming machine is for Solar Structures, PEB project and also for Cable tray, Guard Rail, Roofing Sheets, Floor Decking and all of different kind purlin/channel which make from GI/PPGI/PPGL/Aluminium/Aluminium alloy/SS . Our company, which is located in zhangjiagang city,Jiangsu province, near Shanghai City with superior geographic position and convenient transportation.
Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in 30 years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and regular customers . All of our technology team and marketing person all more than 10 years working.In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
View more products,click here..
https://saiborollforming.en.made-in-china.com/product-list-1.html
FAQ
FAQ
Q1 : How to find Saibo? 1. Search Made-in-China find Saibo, suppliers and manufactrue and not traders
2. Visit exhibition in different countries
3. Send Saibo an request and tell your basic inquiry
4. Saibo sales manager will reply you in short time and add instant chatting tool
Q2 : You are welcome to our factory at any time .
1. If we can fullfill your request and you interested in our products, you may pay a visit to Saibo site
2. The meaning of visiting supplier, because seeing is believing, Saibo with own manufacture and developed& research team, we can send you engineers and make sure your after sales service.
Q3 : How to guarantee your funds to be safe and delivery to be on time ?
1. By letter of credit, you can lock the delivery time easily.
2. After the factory visit, You can ensure the facticity of our bank account.
Q4 : See Saibo how to ensure the quality !
1. In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
2. Each component before assembly needs strictly control by inspecting personnel.
3. Each assembly is in charged by a master who has working experience for more than 5 years
4. After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
Q5 : The after-sale service of Saibo !
1. After finish the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools
2. After the commissioning, we will package the equipment by standard export package for shipment.
3. According to the customer's request, we can arrange our engineers to customers' factory to do the installation and training.
4. Engineers, sales managers and after-sales service manager will form a after-sales team, online and off line, to follow the customers' project.
