Fire Resistant Ep/Nn Rubber Fabric Conveyor Belt for High Things Transportation Factories Smooth Surface Rubber Conveyor Belt

Product Description

Weifang Zhenxing Rubber Co. Ltd., founded in 1980, covers an area of 80, 000m2, with both output value and assets of over 100million RMB.
Welcome Visit us~
Product Description
fire resistant conveyor belt

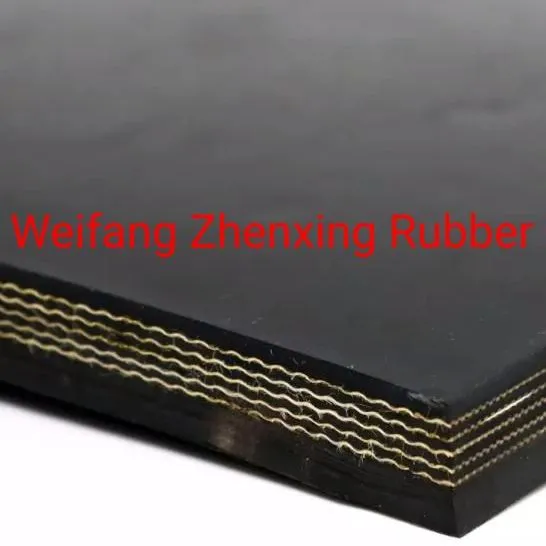

Flame Resistant Conveyor Belt is made of cotton canvas, nylon canvas or EP canvas,finished through the process of calendring, assembling, vulcanizing etcFire resistant conveyor belt is made up of high temperature burning layer, transition layer, the organic insulation layer, a strong heat-resistant layer and layer. The rubber surface uses EPDM(Ethylene Propylene Diene Monomer) or SBR(Polymerized Styrene Butadiene Rubber) to make rubber cover respectively.The polyester canvas or canvas with high strength and high permeability can make the strong layer. These will be bonded together through high-temperature vulcanization
Product Parameters

Name	Fire Resistance Rubber Conveyor Belt
EP Fabric	EP 100 - EP 1200
Thickness	3+1.5mm, 3+2mm, 4+2mm, 4+1.5mm, 4+3mm, 5+1.5mm, 5+2mm, 6+2mm, 8+2mm 3/16"+1/16", 1/4"+1/16", 1/4"+1/8" etc
Ply	1 -6 PLY
Width	400 mm-2600 mm
Tensile strength	8MPA,10MPA,12MPA,15MPA, 17MPA, 18MPA,20MPA,24MPA,25MPA, DIN-X,Y,W, Z RMA-1,RMA-2, N17,M24, MOR
Grade	DIN K , GB/T D , GB/T L
Abrasion loss	90- 250 mm3
Popular Type	EP300/2, EP315/3, EP400/3,EP400/4,EP500/3, EP500/4, EP500/5, EP600/3,EP600/4,EP800/4,EP1000/5,EP1250/5,EP1200/6
Application	Used in cement plant. Steel and lron factory, metallurgy, coking industry. mainly for conveying coke iron and steel castings cement clinker and high temperature materials
Feature	Product selects cotton canvas or EP canvas as skeleton material. Cover rubber and cushion rubber is styrene-butadiene rubber or chlorobutadiene that has good heat resistant work and it is suitable for carrying materials under the temperature of 150ºC

Grade	Tensile Strength MPA	Elongation %	Abrasion Loss mm3	Anti Static	Alcohol burner combustion test	Application
DIN K	20	400	200	3 *10^8Ω	Max 45 seconds	Above ground
GB/T D	18	450	200	3 *10^8Ω	Max 45 seconds	Above ground
GB/T L	14	400	200	3 *10^8Ω	Max 45 seconds	Above ground
Grade I	14	350	200	3 *10^8Ω	Max 10 seconds	Under ground

Applications
Fire resistant steel cord conveyor belt (flame resistant steel cord conveyor belt) is suitable for general uses, such as coal washing/coal cleaning plants on the ground, thermal power plants, fertilizer plants, non-coal mines under ground, mining industry.It should meet requirements of electrical and fire safety properties
Company Profile
Our Advantages
Quality Principle
carries out customer centered service and regards quality first, service first and credibility first as its tenet.
Corporate Spirit
Sapience: One should be strict with oneself and lenient towards others and treat others as one would like to be treated.
Wisdom: Take a farsighted view with a down-to-earth spirit. Only through change, reverse thinking and boldness to innovation can chances be grasped and adversity turn into advantage.
Bravery: Think what others dare not think and do what others haven't done; dare to shoulder responsibilities and correct mistakes.
Fortitude: Never give up. Try all possible means to achieve the goal. Never find excuse but solution to the difficulty.
Culture Concept
Mission: To create a win-win situation, is committed to building a stage for the mutual growth of as well as its staff, providing room for employees to realize their self value and dreams and earn fortune and social respect and letting all of us enjoy the success of our career and the happiness of work.
Quality inspection1) Provide a sample before mass production. 2) Tracing the different steps of production from the beginning. 3) Each product will be checked before delivery. 4) Try our best to help clients when problem occurred.After Sales Service
FAQ
(1)Q: Are you a factory or trading company?
A: We are a factory with an export license. We have the most convenient transportation conditions.
(2)Q: Do you offer samples?
A: We are glad to offer you free samples. New clients are expected to pay for the delivery cost, this charge will be deducted from the payment for the order.
(3)Q: How about the lead time?
A: Within10-20 days after getting the prepayment or L/C.
(4)Q: How can we pay?
A: For a small sample shipping costs, you can pay either by PayPal or by T/T. And by T/T or L/C at sight for a large amount of the order.
(5)Q: Can you do CO, Form E, Form F, Form A, etc?
A: Yes, we can do them for you.
(6)Q: What is your factory's main product?

No.	Rubber Conveyor Belt
1	Conveyor Belt for General Purpose
1.1	EP(polyester) Conveyor Belt: EP100,EP125,EP150,EP200,EP250,EP300,EP400,EP500,EP630
1.2	NN(Nylon) Conveyor Belt : NN100,NN125,NN150,NN200,NN250,NN300,NN400,NN500,NN630
1.3	Cotton Conveyor Belt: CC-56 CC70
1.4	Steel Cord Conveyor Belt: ST630,ST800,ST1000,ST1250,ST1600,ST2000,ST2500,ST3150,ST4000,ST4500,ST5000, ST5400
2	Conveyor Belt for Special Purpose
2.1	Heat Resistant Conveyor Belt
2.2	High-Temperature Conveyor Belt
2.3	Fire Retardant Conveyor Belt
2.4	Cold Resistant Conveyor Belt
2.5	Oil Resistant Conveyor Belt
2.6	Chemical Resistant Conveyor Belt
3	Chevron (PaConveyor Belt
4	Bucket Elevator Conveyor Belt
5	Sidewall Conveyor Belt
6	Flat Transmission Belt
