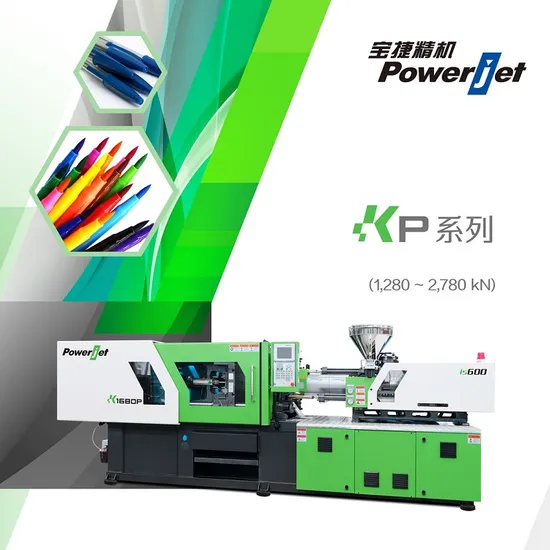

Powerjet Horizontal Servo Plastic Injection Molding Machine for Ballpoint Penholder Production

Product Description

KP series advantages
Designed for high straightness products such as thin-walled and slender pen holders.
The product has stable size, high aesthetics and high yield.
The shaping cycle is fast, and the production capacity is increased by more than 20% compared with the industry brand.
Applicable product and process requirements
Plasticizing and color mixing are good.
The concentricity of the slender pen holder has high requirements on the rigidity and stability of the clamping structure.
The individualized cooperation of professional mould makes the production more convenient and efficient.
Machine Details
CLAMPING UNIT
Center-pressing toggle structure design, high clamping force, high rigidity, low deformation, production fast and stable.
T-slot platen, convenient and fast mould change.
MACHINE ARCHITECTURE
Strengthen frame, more sturdy, reduce vibration, stable operation.

Application
Machine Model: K168P-S7
Machine Model: K228P-S7
Production: Marker pen
Material: PP
Weight: 403.2g
Cavity: 64
Cycle time: 15s

Machine Model: K228P-S7
Production: Marker pen
Material: PP
Weight: 403.2g
Cavity: 64
Cycle time: 15 Product Parameters

MODEL		UNIT		K228P-S7
INJECTION UNIT	Screw Diameter	mm	60
	Screw L/D Ratio	L/D	19.5
	Injection Volume	cm3	693
	Shot Weight	g	617
	Injection Rate	g/s	373
	Injection Pressure	Mpa	135
CLAMPING UNIT	Clamping Force	KN	2280
	Opening Stroke	mm	490
	Space Between Tie-Bars	mm	530*530
	Mould Thickness(Min-Max)	mm	180-550
	Ejector Force	KN	65
	Ejector Stroke	mm	150
GENERAL	Pump Pressure	MPa	17.5
	Motor Power	KW	42
	Heater	KW	13
	Machine Dimension	m	5.29*1.58*1.8
	Machine Weight	T	6.5

Company Profile
We have established a global marketing network to deliver the value of Powerjet injection molding machines and extrusion blow molding machines to over 100 countries. Our team consists of multiple senior managers and business elites worldwide, making us trustworthy partners in the industry. We are committed to providing the most thoughtful service and fastest user support to our customers.
With Powerjet Plastic Machinery Co., Ltd., you can expect sincerity and dedication in meeting your needs. Choose us for reliable and efficient injection molding and extrusion blow molding machines.
Satisfied Customers

FAQ
Q1: Are you a manufacturer or trading company? A1: We are a factory for plastic machines. Over 23 Years Experience In Manufacturing Injection Molding Machine And Blow Molding Machine. Q2: Delivery time A2: Normally Machine Delivery from the factory in 0-60 days after receiving the down payment. (During Chinese Public Holidays like National Day or Chinese New Year, the delivery time should be 10-30 days longer accordingly). Q3: Where is your factory located? A3: Our factory is located at No.5 Chuangxin Xi Road, Leping Town, Sanshui District, Foshan City, Guangdong Province, China. 1h drive from Guangzhou to our factory. Welcome to visit our factory.
