50-300tph Hard Rock Granite Basalt Granite Riever Stone Symons Cone Crusher

Product Description

50-300TPH Hard Rock Granite basalt granite Riever Stone Symons Cone Crusher For Sale Product Description

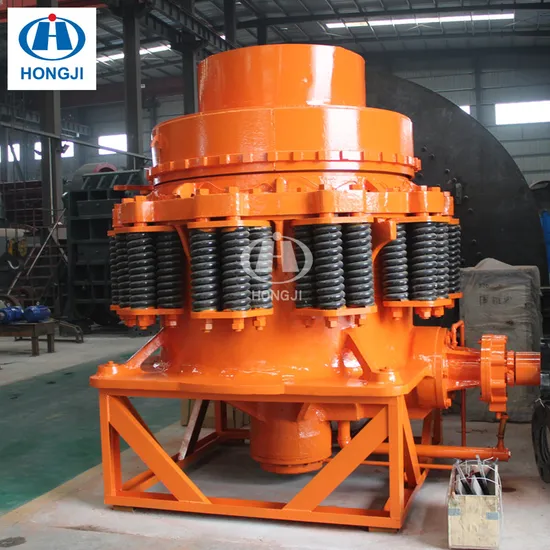

Spring cone crusher is applied to process above medium hardness ore stone and rock. Its spring insurance system is overload protection to protect machine from damage of metal, grease and water seal are adopted, segregating stone powder and grease to guarantee stable working performance. This type of crushing chamber depends upon the purpose of mineral. The standard type (CS) is applied to medium crushing, the medium type is applied to medium or fine crushing and the short head type is applied to hyper fine crushing. Spring cone crusher is widely applied in metallurgy, construction. Spring cone crusher is applied for processing above medium hardness ore and rock and widely used in metallurgy, construction, hydropower, transportation, chemical and building materials industry with many advantages like reliable structure, high capacity, easy adjustment, and low cost, etc.
Application
Applied material : Gold, Copper, Iron, Rock, gravel, fireclay, slag, Coal ,different kinds of ore, and other hard materials.
Product Parameters

del	Movable Cone Diametermm (inch)	Chamber Style	Opening Side	Closed Side	Discharging Opening (mm)	REV (r/min)	Power (kw)	Motor Model	Capacity (t/h)	Machine Size (mm)
			Max.Feeding (mm)
CSB75	900 (3′)	medium	83	102	9-22	580	6-75	Y315S-6/75	45-91	2821×1880 ×2164
		coarse	159	175	13-38				59-163
CSD75	914 (3′)	fine	13	41	3-13	580	6-75	Y315S-6/75	27-90	2821×1880 ×2410
		medium	33	60	3-16				27-100
		coarse	51	76	6-19				65-140
CSB160	1295 (4 1/4′)	fine	109	137	13-31	485	6-185	Y355M2-6/185	109-181	2800×2342 ×2668
		medium	188	210	16-31				132-253
		coarse	216	241	19-51				172-349
CSD160	1295 (4 1/4′)	fine	29	64	3-16	485	6-160	Y355M1-6/160	36-163	2800×2342 ×2668
		medium	54	89	6-16				82-163
		coarse	70	105	10-25				109-227
CSB240	1650 (5 1/2′)	fine	188	209	16-38	485	6-240		181-327	3911×2870 ×3771
		medium	213	241	22-51				258-417
		coarse	241	268	25-64				299-635
CSD240	1650 (5 1/2′)	fine	35	70	5-13	485	6-240		90-209	3917×2870 ×3771
		medium	54	89	6-19				136-281
		coarse	98	133	10-25				190-336
CSB400	2134 (7′)	fine	253	278	19-38	435	6-400		381-726	5200×4300 ×4700
		medium	303	334	25-51				608-998
		coarse	334	369	31-64				870-1400
CSD400	2134 (7′)	fine	51	105	5-16	435	6-400		190-408	5200×4300 ×4700
		medium	95	133	10-19				354-508
		coarse	127	178	13-25				454-599

Cases
Company Profile
Hongji Mining Machinery Co, Ltd. is a large production-oriented enterprise with import and export qualifications, mainly providing "whole mining beneficiation equipment system and service, and is a large-scale joint stock enterorise intecrating RaD, manufacturing, sales. and EPC proiect The company is headguartered at No. 166 North Taojia Road, Xingyang City, Zhengzhou City, Henan Province , with a total area of more than 80000 square meterAfter more than 20 years of development, now t has three producton bases, more than 180 sets of varous arge and medium-sized processing machining ivetina. weldina. and assemblv equipment. more than 200 emplovees. with 75 senior and intermediate itles' professional encineers.
FAQ
1. How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
2. Guaranteed:
If products 'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
3. How about price?
Yes, we are factory and are able to give you the lowest price than market one and we have a policy that "for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity.
4. Service and Payment Terms?
A. We usually accept T/T, L/C, but other terms also workable.
B. We take pictures of finished products before delivery.
5. Will you help with installation and staff training?
Yes, we can send our engineers to your place to guide the installation and train your workers if needed, but the buyer should bear our technician's round tickets, accommodation, and food.
