Biogas Detector, H2s O2 CH4 CO2 Infrared Sensor, Biogas Analyzer

Product Description

Biogas Detector, H2S O2 CH4 CO2 Infrared sensor, Biogas analyzer Features

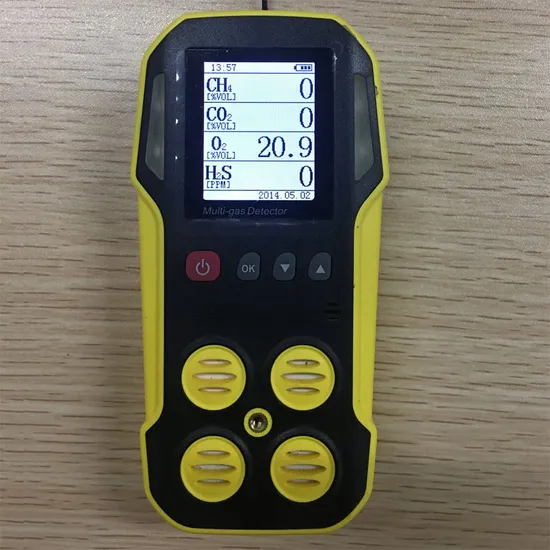

Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)
• Measures %CH4, CO2, Oxygen; and ppmH2S
• CH4 and CO2 accuracy ±3% after calibration
• SGX infrared(NDIR) sensor from UK for CH4 and CO2, CityTech Electro-chemical sensor from UK
• Up to 5 gases monitored
• Stores and downloads reading data
• Datalogging and profiling function (optional)
• Factory reset option
• Choice of user settings and simple gas reading function
• Certified:CE, EX
• 12 Months warranty

Applications
Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)
• Farm digester gas monitoring
• Food processing biogas monitoring
• Waste water biogas monitoring
• Methane recovery
• Laboratory research and analysis for biogas
Detailed description:
Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)
This item, portable biogas analyzer, is mainly used to detect and analyze biogas concentration, helping to check the digester process is running efficiently.
Specifications
Portable Biogas detector, biogas analyzer(CH4/CO2/H2S/O2)

Model	IRCD4
Gas Detected	Methane CH4	Carbon Dioxide CO2	Hydrogen Sulfide H2S	Oxygen O2
Detection Principle	Specilized 2 IN 1 Infrared Sensor, imported from UK, E2V; 5 Years life span		Electrochemical UK sensor, Alpha; 2 years life span	Electrochemical UK sensor, CityTech; 2 years life span
Sampling Method	Natural diffusion type
Detection Range	(0-100)%VOL	(0-100)%VOL	*(0-2000)PPM	(0.0-30.0)%VOL
Precision /Accuracy	1%VOL	1%VOL	1PPM	0.1%VOL
Operating Temperature	-25ºC~+55ºC, Short time: -40ºC~+55ºC
Chargeable Battery	PL123450, 3.7V/1500mA
Display	LCD Display with backlight
Alarm Mode	Sound & Light Alarm; Full range adjustable
Explosion-Proof	Exibd I(CMExC)
Degree of Protection	IP54
Dimensions	130x66x30 mm
Weight	250g (not including suitcase)
Standard Accessories	English User's Manual; USB charger and adapter; Calibration Cap and tube; Calibration Certificate; Hanging Cord; Protection Leather Case, Professional Briefcase

Standard accessories:
• English User's Manual
• USB cable & Adapter
• Calibration Certificate
• Cap and extension Hose
• Hanging cord
• Leather Case
• Briefcase
Optional accessories
- Gas sampling pump with filter. (sampling hose and probe.)
- Data logger software, works for Windows 10, Windows XP, Windows 7. Available to output Excel file.
- Carrying suitcase. Hard-sided carrying case with foam case insert.
Other related hotsale models as Biogas analyzer, Biogas Detector
- IRCH4: Only analyze Methane (CH4) Gas in Biogas
- IRCO2: Only analyze Carbon Dioxide (CO2) Gas in Biogas
- SAZQ: Simultaneously analyze 3 Gases (CH4, CO2, H2S)
* H2 or NH3 gas for biogas analyzer are also available
