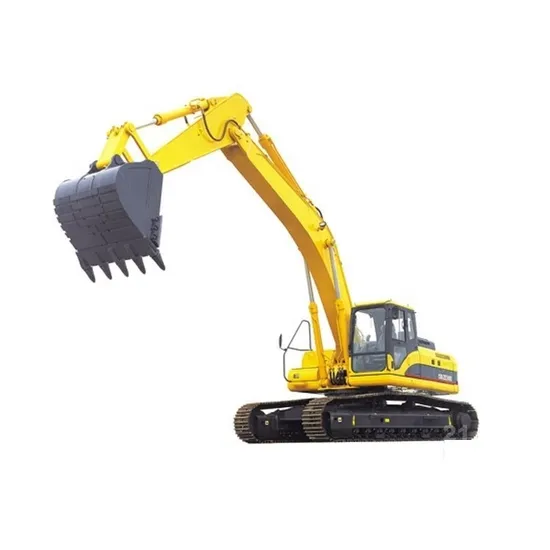

Zoomlion 23 Ton Heavy Crawler Excavator Ze230e with Hydraulic Pipeline
Basic Info.
Model NO.
ZE230E
Type
Crawler Excavator
Usage
Marine Excavator, Mining Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
1.0~1.5m³
Size
Medium-Sized
Certification
CE, ISO9001: 2000
Condition
New
Operating Mass
22800kg
Standard Bucket Capacity
1.1m3
Travel Speed (High / Low)
4.2/2.3km/H
Rated Power
133/2000kw/Rpm
Max. Torque
708/1500n.M/Rpm
Transport Package
Nude Packaging
Specification
10000*2900*3800mm
Trademark
Zoomlion
Origin
Shanghai, China
HS Code
8501109190
Production Capacity
5000units/Year
Product Description
ZOOMLION 23 ton Heavy Crawler Excavator ZE230E with hydraulic pipelineProduct description New high-rigidity cab and silicone oil damper with six supporting points,greatly reducing the cab vibration and making the operator more comfortable.Intensified structural parts provided,fully making the complete machine more reliable.
Specifications
| Key Parameter | Working mass | kg | 22800 |
| Rated power | kw/rpm | 133/2000 | |
| Standard bucket capacity(SAE) | m3 | 1.1 | |
| System flow (Max. pressure/ Max. flow) | - | 34.3 Mpa 2×220 L/min | |
| Engine model | - | B5.9-C(178hp) | |
| Max. torque | N.m/rpm | 708/1500 | |
| Traveling speed (low/high) | km/h | 3.4/5.2 | |
| Slewing speed | rpm | 11.3 | |
| Gradeability° | ° | 35° | |
| Max. drawbar pull | kN | 195 | |
| Digging force of bucket (ISO) | kN | 155 | |
| Digging force of stick (ISO) | kN | 124 | |
| Basic Parameter | Slewing radius of tail | mm | 2840 |
| Tail length | mm | 2800 | |
| Counterweight ground clearance | mm | 1070 | |
| Min. ground clearance | mm | 440 | |
| Ground contact length | mm | 3660 | |
| Track length | mm | 4450 | |
| Track gauge | mm | 2390 | |
| Track width | mm | 2990 | |
| Track shoe width | mm | 600 | |
| Height of grouser | mm | 26 | |
| Slewing table width | mm | 2720 | |
| Operating Range | Max. excavating radius | mm | 10180 |
| Max. excavating distance | mm | 10005 | |
| Max. excavating height | mm | 10250 | |
| Max. discharging height | mm | 7260 | |
| Max. excavating depth | mm | 6860 | |
| Max. vertical excavating depth | mm | 5980 | |
| Min. slewing radius of front | mm | 3160 |
Product Pictures
