Advanced CNC 3D Drilling Equipment for Steel Plates

Product Description

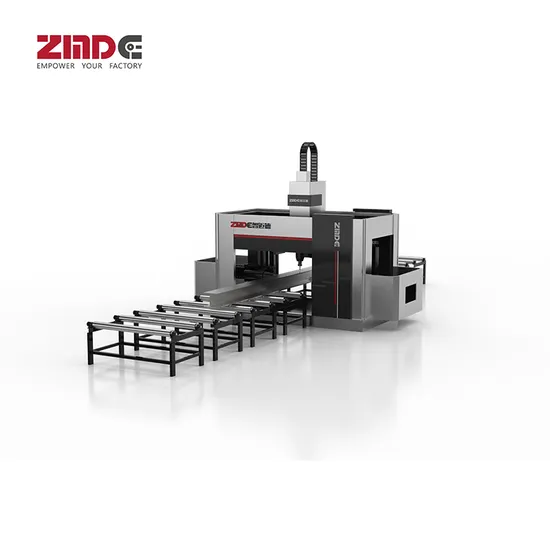

ZMDE H Beam Steel Plate Processing 3D CNC Drilling Machine
Technical Parameters

Item.	Model.	Machine Technical.
CNC 3D drill	ZMD-GSWZ10070/3A	1.H-beam: 150x80~1000x700mm 2.U-beam: 150x80~1000x400mm 3.Box beam: 150x80~1000x400mm 4.Thickness: ≤80mm 5.Length: 12m 6. Short material limit: automatic processing ≥ 3000mm 7.Manual processing: 690~3000mm 8.Power source: AC 380V 50HZ 3-phase

Our advanced device ensures precision with the capability to drill holes on three sides of H-beam steel concurrently. Equipped with an impressive 7-axis CNC system, it utilizes CAD/CAM for direct program generation. It supports a maximum H-beam section size of 1000×500mm and a maximum drilling diameter of 33.5mm. The control system integrates computer numerical control, AC servo system, photoelectric encoder, and PLC. By simply inputting the workpiece dimensions, the machine can automatically generate, store, recall, display, and process the machining program based on part numbers.

More Machine Configuration (Due to different product models, the actual product may differ slightly from the picture)
Machine Model		ZMD-SWZ-74-A
H Beam Processing range(mm)		150×100-700×400
Automatic feeding length(mm)		1500-12000
Max. Web plate thickness(mm)		≤40
Max. weight of workpiece(kg)		4000
Number of drilling spindles		3×3=9
Spindle speed range(r/min)		180-720
Axial working speed(mm/min)		20-200
pper unit spindle feed travel distance(mm)		220
Max. drilling diameter(mm)		Φ33.5
Total power(kw)		≈30
Equipment Dimension L×W×H(mm)		28000×4220×3220

Company Profile
Established in 2013, ZMDE Co., Ltd. stands as a beacon of innovation in the realm of intelligent assembly building equipment. As a high-tech enterprise recognized as a national specialization, speciality, and new 'small giants' company, ZMDE excels in R&D, manufacturing, sales, and service. Our core industries encompass steel structure assembly building intelligent industrial mother machines and industrial IoT solutions.intelligent control system solutions.
Our headquarters is strategically located in Lingang New Area, Pudong New District, Shanghai, housing the Research Institute of Artificial Intelligence for Assembled Buildings over an expansive 32,000 square meters. This facility focuses on high-end core technology R&D for Artificial Intelligence in Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT), alongside company management functions.
Situated in Weicheng District, Weifang City, our Shandong base specializes in the research, development, and production of intelligent industrial mother machines for steel beams and walls of assembled buildings.intelligent mother machines for walls of assembled buildings.

FAQ
1. Q: What is the minimum order quantity for your products?
A: Our minimum order quantity is just 1 PCS, offering unparalleled flexibility for all our esteemed clients.2. Q: Could you specify the payment terms you accept?A: For your utmost convenience, we accept both L/C (Letter of Credit) and T/T (Telegraphic Transfer).3. Q: What is the typical delivery time for your orders?A: Our standard delivery time is approximately 30 days, ensuring your orders are fulfilled promptly and efficiently.4. Q: What is the duration of your warranty period?A: Our warranty period lasts for 1 year. Moreover, original manufacturers' equipment parts come with lifelong maintenance benefits.5. Q: Do you offer ODM/OEM services?A: Absolutely, we proudly offer both ODM and OEM services to cater to your specific needs and requirements.
