Agricultural Implements Tractor Mounted Share Plough

Product Description

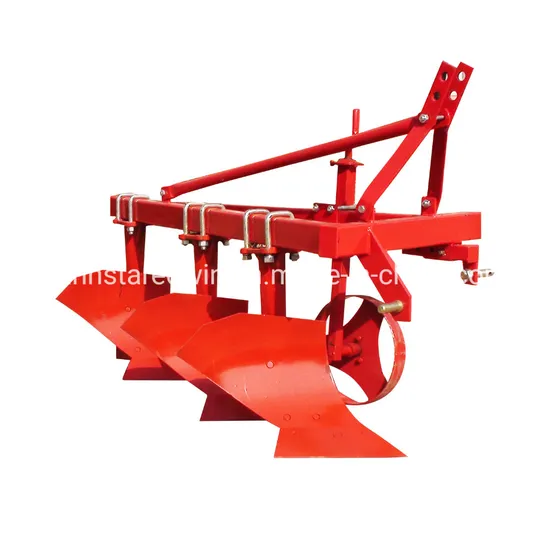

Agricultural implements tractor mounted share plough
Three point mounted furrow plough, it is suitable for dry land farming in sandy loam areas. The plough has the characteristics of simple structure, flat surface, good work efficiency, nice performance of broken soil cover, large adaptability range, small moisture ditch and so on. The plough can be divided into fixed type plough, flip type plough (1LF). According to the main parameters, can be divided into 20 series, 25 series, 30 series, 35 series.
It produces the best work, leaving level surface etc. Suitable for loam and sandy loam soils in the cultivated area, the soil specific resistance: 0.6-0.9kg/cm2. It produces the best work, leaving level surface etc. The plough is also compact in construction, and versatile in application.After plowing, the furrow is narrow with a good pulverization and mulching and the land surface is smooth.
The furrow plough has wide scope of specification, the width of plow share could be 20cm, 25cm, 30cm and 35cm. The material of plough share is 65Mn spring steel, the material is from Lingyuan and Anshan steel company, which are the best steel companies in China. The working depth can be adjusted by the depth limiting wheel.
We can produce all spare parts of the plough, especially of the share, customers can replace the share when have some damages conveniently.
Features: Three point mounted with 4WD tractor. Single share working width is 25cm, generally the share quantity can be 2,3,4 and 5, that is working width 500mm, 750mm, 1000mm and 1250mm, which can satisfy different working demand. The share of plough is 65Mn spring steel, it is hard enough against hard solid and stones. Details:
Depth limiting wheel:
Back side of the plough:
Rear side of plough:
Linkage with tractor:
Parameters:

Model	1L-225	1L-325	1L-425	1L-525
Working width (mm)	500	750	1000	1250
Working depth (mm)	200-250
No. Of share	2	3	4	5
Weight (kg)	25	35-45	50-60	60-70
Linkage	Three point mounted
