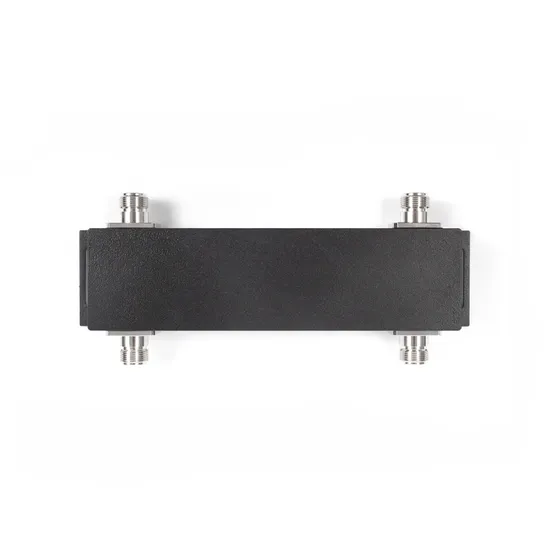

698-4000MHz RF 3dB Hybrid Coupler Combiner for Radio Repeater System

Product Description

Product Description

300W 3dB Hybrid Coupler(698-4000MHz, 4.3-10 Female, -160dBc, IP65)
A 3 dB hybrid coupler is a four-port device that is used either to equally split an input signal between output ports or to combine two signals while maintaining high isolation between the ports.
Topwave Model TPW-3HC-7400-160-41F, 3dB 698-4000MHz 4.3-10 Female wideband hybrid coupler with low PIM, low insertion loss and power handling up to 300 watts. The hybrid couplers provide the bandwidth, high directivity and high power that designers need for their most demanding applications. It is widely used for in-building DAS and IBS. Now available with type N, 7/16DIN and 4.3-10 connectors, all available in stocks with factory price.

Features & Benefits

·Guaranteed Parameters Compliance
·Wide Frequency Band Covering 698-4000MHz
·Low Insertion Loss
·Low VSWR
·Indoor & Outdoor Using IP65
·Available with Type N, 7/16DIN, 4.3/10 Connectors

Electrical & Mechanical Specifications

Model No.	TPW-3HC-7400-160-41F
Coupling(dB)	3
Insertion Loss(dB)	≤1.0
Isolation	≥20
Freq(MHz)	698-4000MHz
VSWR	≤1.25
PIM Rating(dBc)	-160dBc@2x43dBm
Power Rating(W)	300W (average Per Port)
Impedance	50 ohm
Connector	4.3/10-female
Color	Black
Relative Humidity	5-95%
Operating Temperature(ºC)	-25°C to +75°C
Weight(kg)	0.65(approx)
